41 34 041 Replacing tail panel

Read contents of BODY, GENERAL .

STRIP DOWN VEHICLE .

Observe procedure for REPAIR STAGE 2

The following new body parts are required:

The following CONSUMABLES  are required:

Fig 1: Identifying Inner Rear Trim And Outer Skin Rear Trim
G05516736Courtesy of BMW OF NORTH AMERICA, INC.
MATERIAL QUANTITY SPECIFICATION

Material Quantity
Adhesive K5b 1
Blind rivets N3 30
Punch rivets N4 14
EMC screw 2
Cavity sealing wax remover
Cleaning agent R1 1
Sealant D1

Removing rear trim panel

Operation is described on the left side. Right side identical.

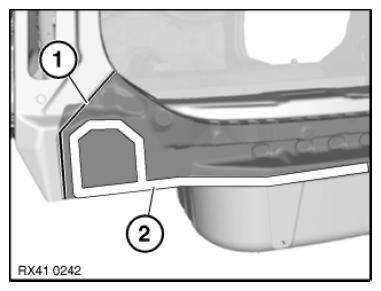

Mark severance cut (1) and cut.

Cut outer metal panel only.

Open welded connections in areas (2).

Fig 2: Identifying Severance Cut Mark And Welded Connections Area
G11003291Courtesy of BMW OF NORTH AMERICA, INC.

View from vehicle interior:

Open welded connections in area (1).

Roughly cut C-pillar reinforcement along line (2).

Remove plate (3).

Fig 3: Identifying Plate, Cutting Area, And Welded Connections Areas
G05516738Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove rear trim.

Fig 4: Identifying Welded Connections Area
G05516739Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Mark severance cut (1) and cut.

Adjust inner rear trim panel and roof outer skin rear trim panel to fit and secure.

Fig 5: Identifying Severance Cut Mark
G11003291Courtesy of BMW OF NORTH AMERICA, INC.

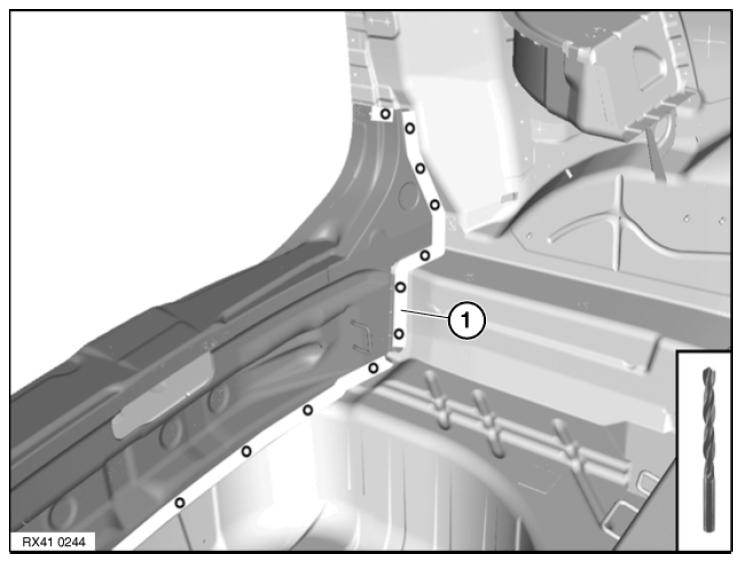

Set eleven 4.2 mm dia. holes for blind rivets in area (1).

Fig 6: Identifying Area For Blind Rivet Bore Holes
G11003295Courtesy of BMW OF NORTH AMERICA, INC.

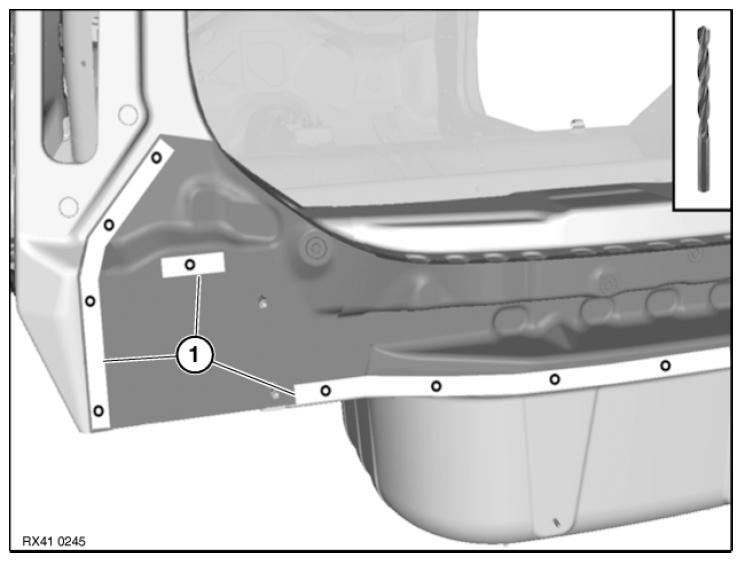

Set 9 4.2 mm dia. holes for blind rivets in areas (1).

Remove new parts again and deburr holes.

Fig 7: Identifying Areas For Blind Rivet Bore Holes
G11003296Courtesy of BMW OF NORTH AMERICA, INC.

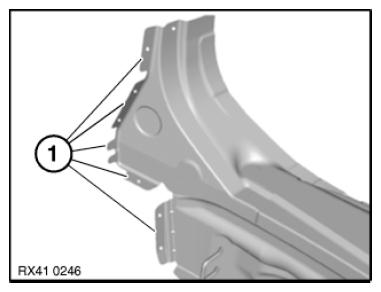

Bend adhesive flanges (1) approx. 30° inwards.

NOTE: Apply adhesive to these adhesive flanges only after installing rear trim panel.
Fig 8: Identifying Adhesive Flanges
G11003297Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind new parts and body in area of bonding surfaces.

Installing rear trim panel

Clean all  bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive K5b to bonding surfaces (1).

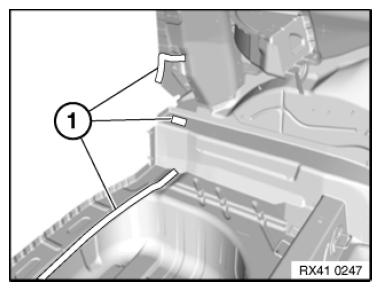

Fig 9: Identifying Bonding Surfaces
G11003298Courtesy of BMW OF NORTH AMERICA, INC.

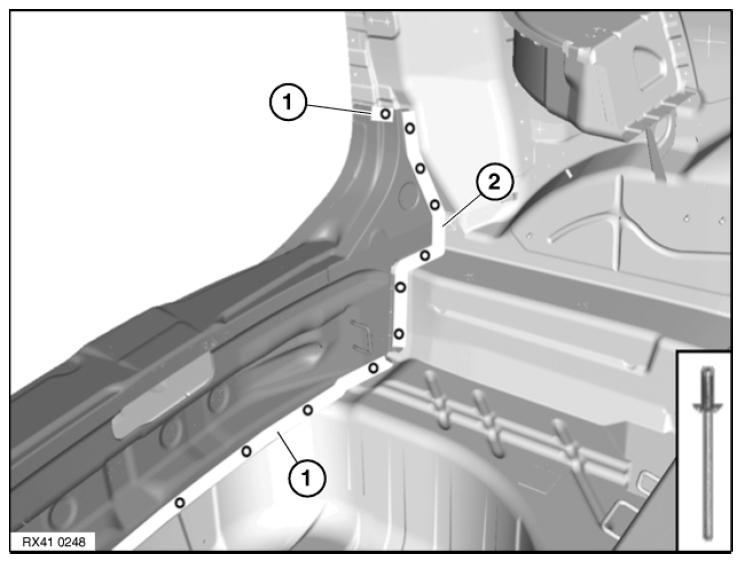

Mount rear trim panel and rivet with blind rivets (1).

NOTE: When inserting rear trim panel, make sure there is sufficient adhesive on bonding surfaces.
Fig 10: Identifying Area For Blind Rivets
G11003299Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive to adhesive flanges (2).

Bend back adhesive flanges and rivet with blind rivets (2).

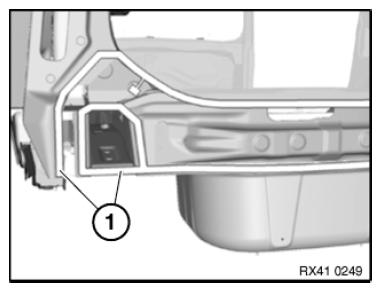

Clean all  bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive K5b to bonding surfaces (1).

Fig 11: Identifying Bonding Surfaces
G11003300Courtesy of BMW OF NORTH AMERICA, INC.

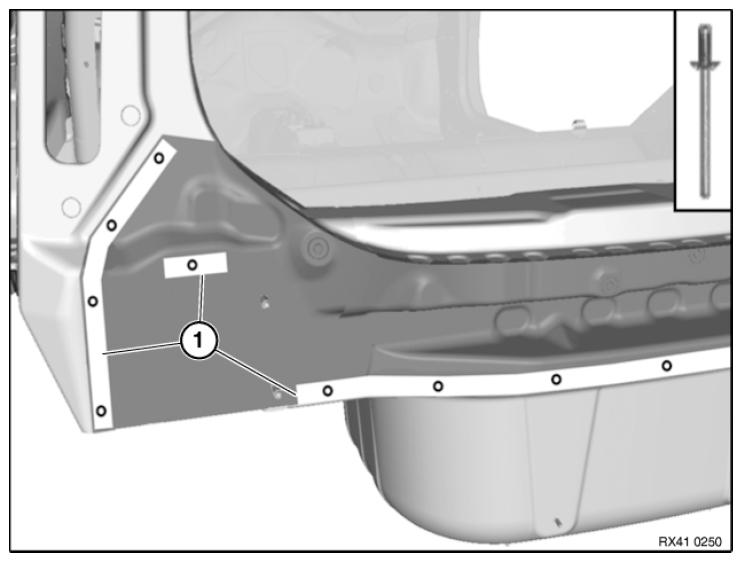

Mount rear trim panel and rivet with blind rivets (1).

Fig 12: Identifying Areas For Blind Rivets
G11003301Courtesy of BMW OF NORTH AMERICA, INC.

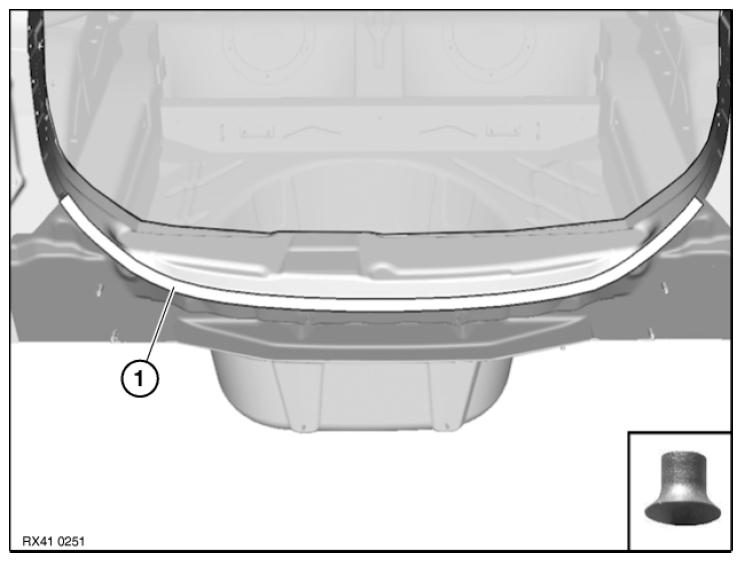

In area (1) rivet rear panel with 14 punch rivets.

Mount carrier for bumper trim to secure rear trim panel.

Fig 13: Identifying Area For Punch Rivets
G11003302Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Prevent emerging adhesive from coming into contact with cross-member!

After adhesive has hardened in area (1), fit an EMC SCREW .

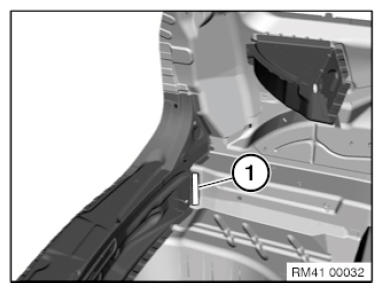

Fig 14: Identifying Adhesive Area
G11003303Courtesy of BMW OF NORTH AMERICA, INC.
