610210 Die-plate

NOTE: (Matrix LSK 8) (crimp insert set for load current contact 8) in conjunction with crimping pliers 61 0 202 (from the set 61 0 200 )

Storage Location:

M22 x 204

SI number:

02 02 05 (194)

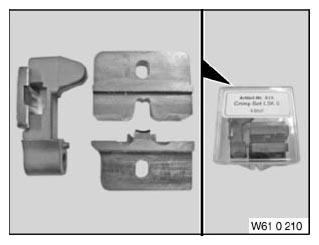

Fig 1: Identifying Die-Plate (610210)

Courtesy of BMW OF NORTH AMERICA, INC.
