61 62 100 Adjusting the washer jet for rear window washer system

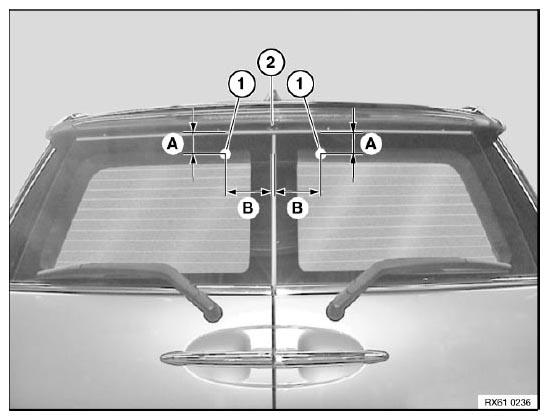

Fig 1: Adjusting Washer Jet For Rear Window Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Rear wipers must be in rest position.

Mark contact points (1) with adhesive tape (A=42 mm/B=100 mm).

Operate the window washer system.

Spray jet must contact the marks.

If applicable, adjust spray jet (2).

IMPORTANT: Do not insert pointed objects in washer jet (2) (risk of damage).

Adjust the washer jet (2) with a suitable tool until the spray jets hit the marks.

If applicable, remove remaining adhesive from the rear window.

Fill up with washer fluid.
