61 61 081 Replacing the left or right wiper arm

Special tools required:

Pull off the protective cap (1).

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Catches (1) and fasteners (2) of the protective cap (3) must not be damaged.

Fig 2: Identifying Wiper Arm Catches, Fasteners And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1). Tightening torque 61 61 1AZ .

Fig 3: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Detach wiper arm with special tool 61 6 130 .

Remove the WIPER BLADE .

Installation note:

Adjust the SETTING OF THE WIPER ARMS in rest position.

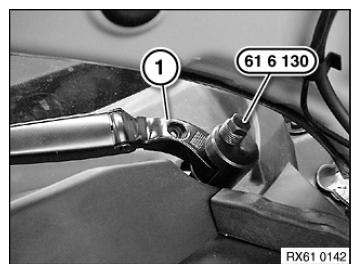

Fig 4: Detaching Wiper Arm With Special Tool (61 6 130)

Courtesy of BMW OF NORTH AMERICA, INC.
