51 13 124 Removing and installing/replacing right cowl panel cover

Remove gasket (1).

Release nut (2) and screw (3).

Unclip cover (4) towards top from retaining strip (5) and feed out.

Installation:

Make sure cover (4) is correctly seated on retaining strip (5).

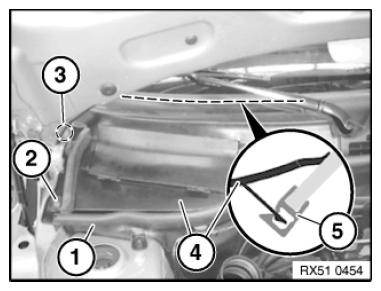

Fig 1: Identifying Cover, Retaining Strip, Gasket, Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on cover (2) must not be damaged.

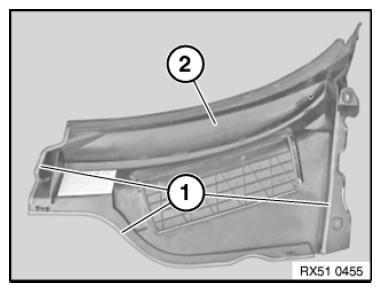

Fig 2: Identifying Seals On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
