61 61 270 Removing and installing or replacing console for windscreen washer system complete with motor

Necessary preliminary tasks:

• Remove LEFT COWL PANEL COVER

Slacken nut (1). Tightening torque 61 61 2AZ .

Installation note:

Make sure that the holder is properly aligned with the grommet.

Fig 1: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1). Tightening torque 61 61 2AZ .

Disconnect plug connection (2).

Remove wiper console.

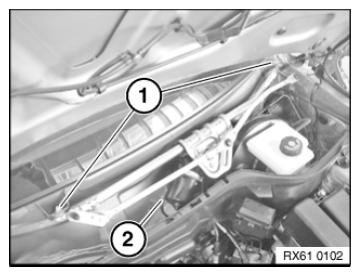

Fig 2: Identifying Screws And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
