51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove COVER FROM TAIL PANEL
Remove rear window STORAGE SHELF at front
Remove UPPER PARTITION TRIM PANEL

Remove the storage box (1) towards the top.

Fig 1: Removing Storage Box

Courtesy of BMW OF NORTH AMERICA, INC.

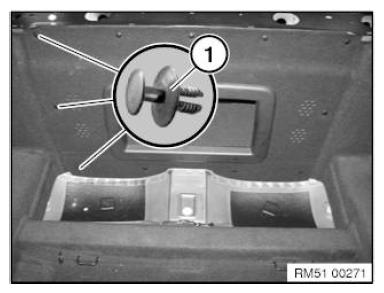

Undo expanding rivets (1) at the luggage compartment partition wall trim panel.

Installation note:

If necessary, replace faulty expanding rivets (1).

Fig 2: Identifying Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release trim ring (1) from clamps (2) in the areas marked and remove.

Installation note:

If necessary, replace faulty clamps (2).

Fig 3: Identifying Trim Ring And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

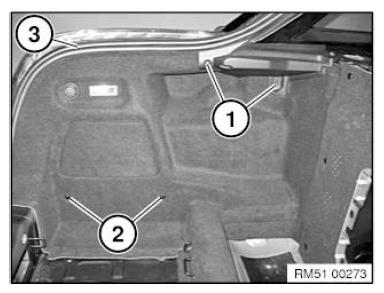

Release screws (1).

Lift out expanding rivets (2).

Installation note:

If necessary, replace faulty expanding rivets (2).

Lift out edge protection (3).

Fig 4: Identifying Edge Protection, Expanding Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Please observe notes on EDGE PROTECTION ASSEMBLY .

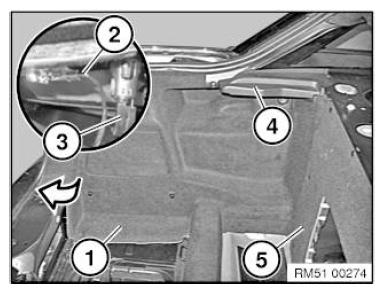

Pull the luggage compartment trim panel (1) slightly backwards at the rear.

Unlock and disconnect the plug connection for the luggage compartment light (2) and 12 volt charging socket (3).

Unhinge and remove the luggage compartment trim panel (1) in the direction of the arrow.

Installation note:

Fig 5: Removing Luggage Compartment Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the luggage compartment trim panel (1) behind the storage shelf fixture first (4) and insert the luggage compartment partition wall trim panel (5).

Replacement (depending on version):

Remove LUGGAGE COMPARTMENT LIGHT .

Remove 12 volt charging socket.
