51 47 000 Removing and installing/replacing front left or right door sill cover strip

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Seat shown removed for purposes of clarity.
Place a cloth over the seat cover before feeding out the door sill cover strip (risk of damage/scratching).

Release edge protection (1).

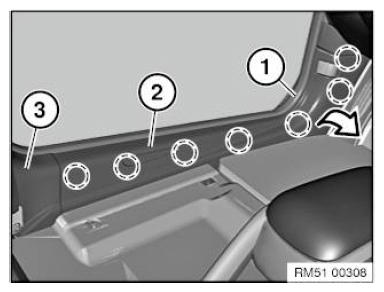

Fig 1: Releasing Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip door sill cover strip (2) at marked points.

Feed door sill cover strip (2) out of side trim panel (3) in direction of arrow.

Installation note:

Guide and clamp (1) must not be damaged.

If necessary, replace faulty clips (2).

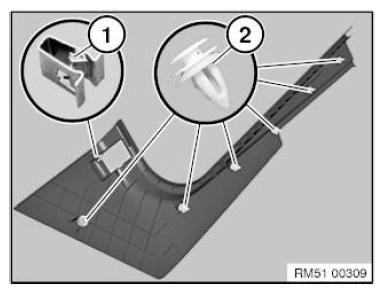

Fig 2: Identifying Clamp And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
