66 12 100 Removing and installing (replacing) slide-in unit for radio-operated key (start/stop switch)
WARNING: This page is about a different car, the 2010 MINI Cooper and 2009 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
Special tools required:
IMPORTANT:
In the event of complaint "slide-in unit for radio-operated key jams or can not be retained", carry out following checks before replacement:

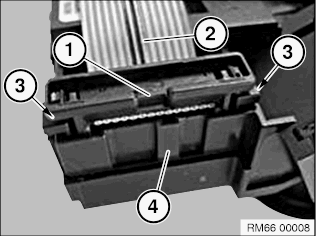

- Check both sides of plug connection of ribbon cable (1) to slide-in unit for radio-operated key (4) for correct locking (3).
- Check ribbon cable (2) for damage.
If required, lock plug connection of ribbon cable (1) correctly and carry out function check.
If this rectifies fault pattern, do not replace slide-in unit for radio-operated key.
Lever out trim (1) with special tool 00 9 340 at retaining points (2) in direction of arrow.
Release screws (1).
Remove slide-in unit for radio control key (2).
Installation note:
Make sure clasps (1) are correctly seated, replace if necessary.
