Removal & Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, 2004 MINI Cooper, and 2003 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Detach shift cable assembly at shift lever bracket.
On Cooper, remove battery box.

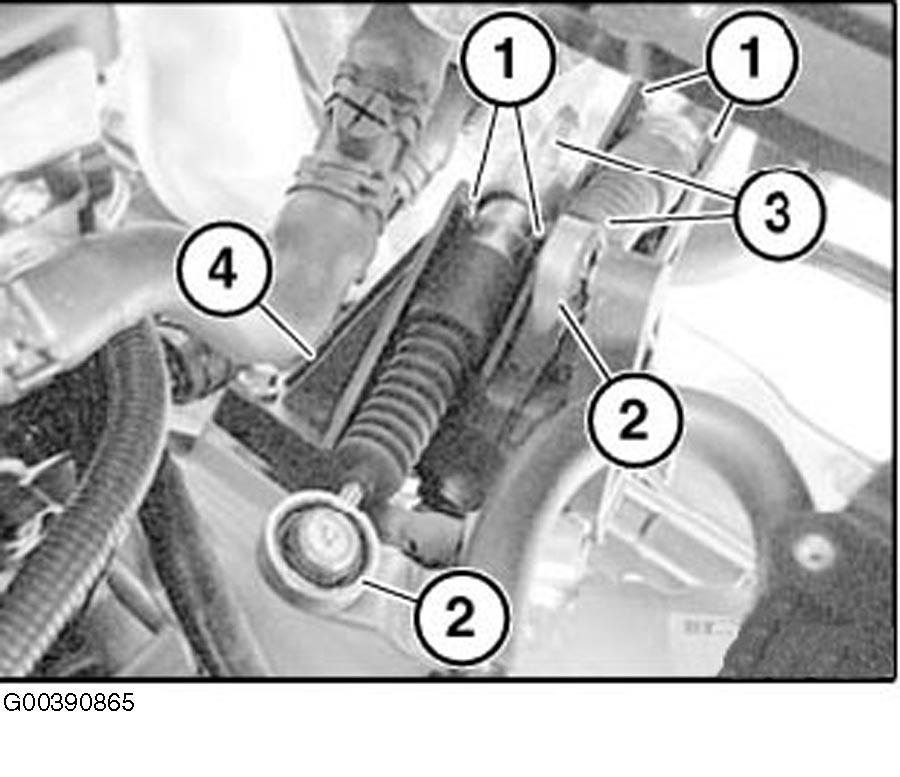

Release clips (1) for shift cable at housing. Detach shift cable from ball joint (2). Pull shift cable (3) out of housing (4). Remove housing and cable from vehicle. See Fig 1.

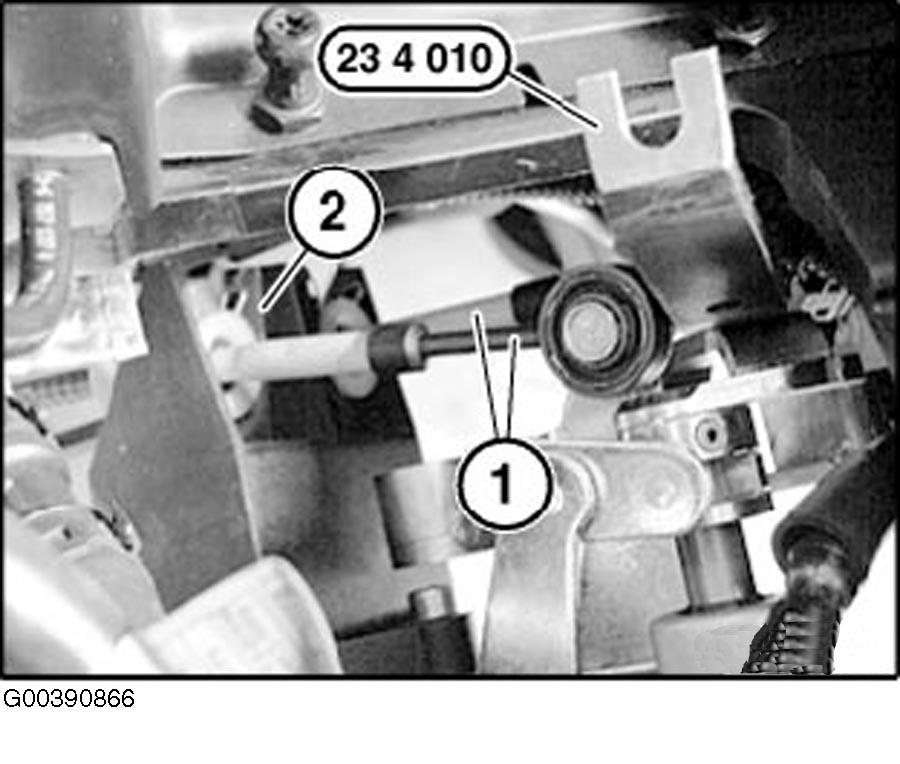

On Cooper S, remove intake filter housing. See INTAKE FILTER HOUSING (COOPER S) . Use special tool 23 4 010 to detach shift cable assembly (1) at ball joint. Detach shift cable at stop/bracket (2) and remove. See Fig 2.
