51 12 156 Removing and installing rear bumper panel (from 08/2010)

Necessary preliminary tasks:

• Remove COVER ON WHEEL ARCH FROM BUMPER PANEL

  R56 only:

• Loosen the underbody panelling on the rear of the bumper panel

Release clip (1) on left and right.

Fig 1: Identifying Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

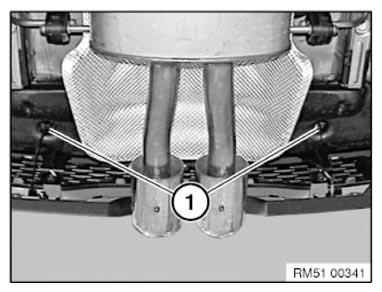

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Undo screws (1 and 2)

Pull off bumper panel (3) slightly towards rear with aid of a 2nd person.

Disconnect plug connections for rear fog light/ultrasonic sensor.

Remove the bumper panel (3).

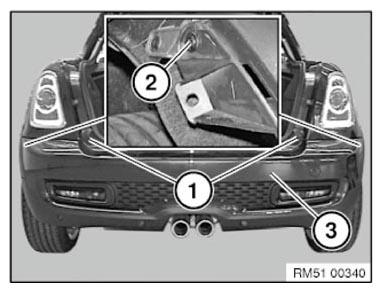

Fig 3: Identifying Bumper Panel And Screws
