65 12 072 Removing and installing/replacing amplifier

Necessary preliminary tasks:

• Remove LEFT FRONT SEAT

Release screws (1) and (2).

Remove cover (3).

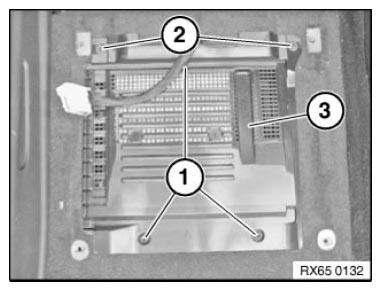

Fig 1: Identifying Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove amplifier (2).

Unfasten plug connection (3) and disconnect.

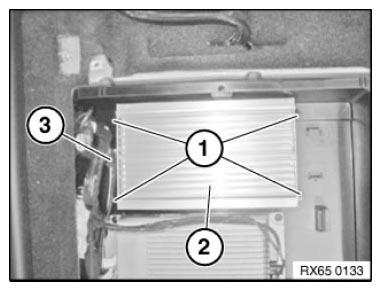

Fig 2: Identifying Amplifier Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING
