51 24 100 Removing and installing/replacing tailgate lock

Necessary preliminary tasks:

Version with manual unlocking:

Lift housing (1) out of tailgate lock (2) in direction of arrow.

Fig 1: Lifting Housing Out Of Tailgate Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Version with manual unlocking:

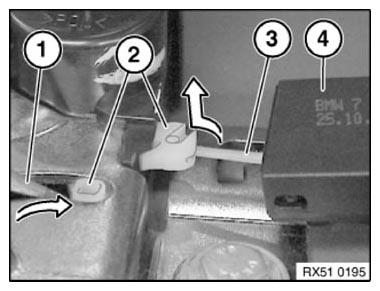

Using a screwdriver (1) press the holder (2) outwards.

Turn the housing (4) to the front and unhook the cable nipple (3) upwards.

Fig 2: Pressing Holder Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Extent of work for "Unhook cable for manual release of tailgate lock" ends here.

Disconnect plug connection (1).

Unscrew bolts (2) and remove tailgate lock (3).

Installation note:

Fig 3: Identifying Plug Connection, Bolts And Tailgate Lock

Courtesy of BMW OF NORTH AMERICA, INC.
