51 12... Removing and installing/replacing frame for rear fog lights left or right

Necessary preliminary tasks:

• Remove REAR FOG LIGHT
• Remove REAR BUMPER TRIM

Loosen latch mechanisms (1) and remove frame.

Installation note:

Latch mechanisms (1) must not be damaged.

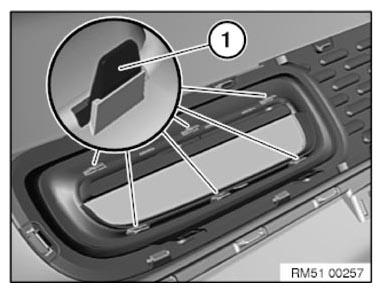

Fig 1: Identifying Latch Mechanisms Of Frame

Courtesy of BMW OF NORTH AMERICA, INC.
