41 00... Use Of Materials In Outer Shell
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

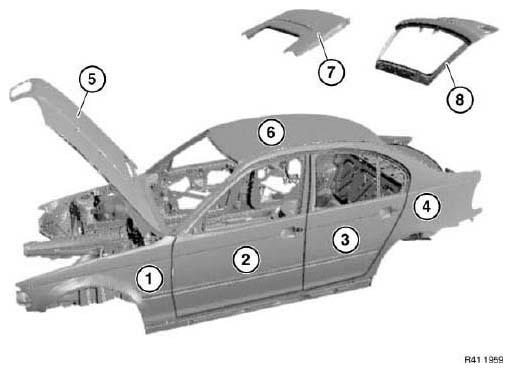

The following illustration is a schematic representation of all the body variants.
Apply this illustration to the relevant vehicle.
All components not listed in the table below are composed of established sheet steel qualities.
BODY COMPONENT REFERENCE CHART
| Component | Vehicle | Material |
|---|---|---|
| (1) Side panel, front | E52 (Z8) | Aluminium |
| E60, E61 | Aluminium | |
| E63, E64 | Plastic (thermoplastic) | |
| E65, E66: | Aluminium | |
| E70, E92, E93 | Plastic (thermoplastic) | |
| (2) Front door | E36/C (M3) | Aluminium or steel |
| E36/2 (M3) | Aluminium or steel | |
| E52 (Z8) | Aluminium | |
| E63, E64 | Aluminium | |
| (4) Side panel, rear | E52 (Z8) | Aluminium |
| (5) Engine hood | E38 (750i) | Aluminium or steel |
| E46/C (M3) | Aluminium | |
| (5) Engine hood | E46/2 (M3) | Aluminium |
| E52 (Z8) | Aluminium | |
| E60, E61, E63, E64 | Aluminium | |
| E65, E66, E70, E71 | Aluminium | |
| E85 (Z4) | Aluminium | |
| E92 (M3) | Aluminium | |
| (6) Hardtop/ roof | E36/C | Aluminium |
| E36/7 (Z3) | Plastic (glass fibre / epoxy resin) | |
| E46/C | Aluminium | |
| E46/2 (M3 CSL) | Plastic (CFK) | |
| E52 (Z8) | Plastic (PU) | |
| E85 (Z4) | Plastic (SMC) | |
| E63 (M6) | Plastic (CFK) | |
| (7) Soft top lid | E46/C | Magnesium |
| E64 | Plastic (SMC) | |
| (8) Rear lid | E46/2 (M3 CSL) | Plastic (SMC) |
| E52 (Z8) | Aluminium | |
| E63, E64 | Plastic (SMC) |
