54 34 436 Removing and installing left or right water drain hose

Necessary preliminary tasks:

• Remove REAR WHEEL ARCH COVER ON LEFT OR RIGHT
• Remove left or right wheel arch panel. See REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL or REMOVING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

Disconnect water drain hose (1) from wheel arch.

Installation note:

Check correct seating of the rubber grommet from the water drain hose (1) in wheel arch.

Fig 1: Identifying Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off water drain hose (1) from water collecting pan (2).

Installation note:

Check correct seating of the rubber grommet from the water drain hose (1) in wheel arch.

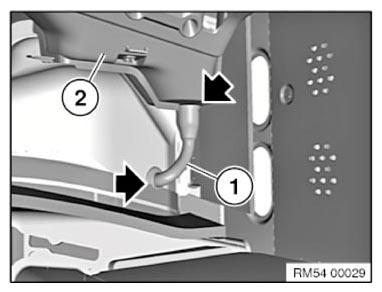

Fig 2: Locating Rubber Grommet From Water Drain Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check that the water drain hose (2) is seated correctly on water collecting pan (1).

Water drain hose (2) and water collecting pan (1) are encoded to prevent incorrect assembly.

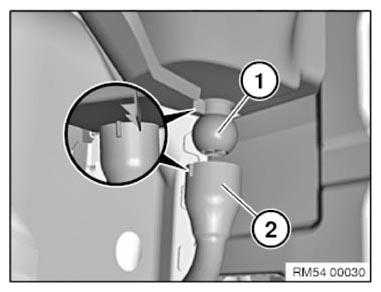

Fig 3: Identifying Water Drain Hose And Water Collecting Pan

Courtesy of BMW OF NORTH AMERICA, INC.
