54 34 435 Removing and installing left or right water collecting pan

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove REAR SIDE TRIM PANEL on left or right

NOTE: The repair work is shown with the soft top removed to provide a better illustration.

Release expansion rivets.

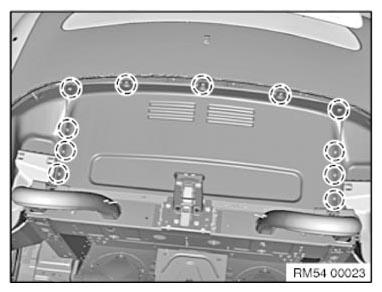

Fig 1: Identifying Expansion Rivets

G11127821

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets.

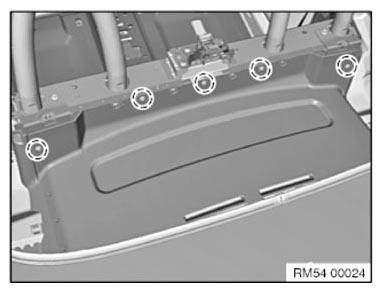

Fig 2: Identifying Expansion Rivets

G11127822

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim panel (1) for soft top compartment.

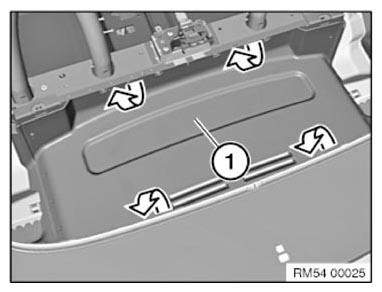

Fig 3: Removing Soft Top Compartment Trim Panel

G11127823

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets.

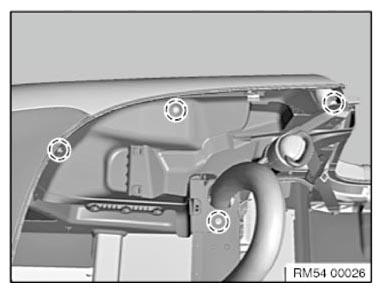

Fig 4: Identifying Expansion Rivets

G11127824

Courtesy of BMW OF NORTH AMERICA, INC.

Remove water collecting pan (1).

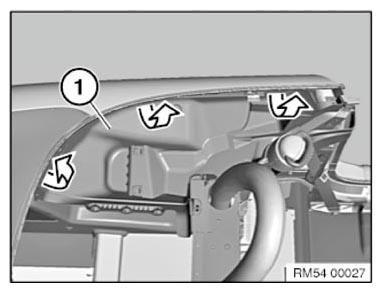

Fig 5: Removing Water Collecting Pan

G11127825

Courtesy of BMW OF NORTH AMERICA, INC.
