54 34 197 Removing and installing/replacing manual rotary handle
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Open soft top partially until work area is accessible
WARNING:
For all repair work, secure soft top with a suitable support tool against collapsing.
Ensure soft top is supported in the middle.
Ensure soft top is supported in the middle.

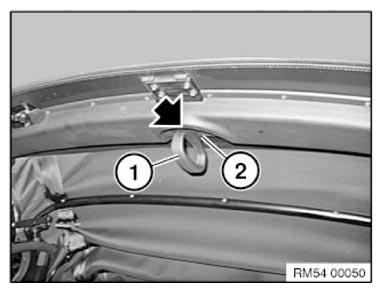

Turn manual rotary handle (1) to 90° position.
Release screw (2).
Tightening torque 54 34 1AZ .
Drive out screw (2) through manual rotary handle (1) in direction of arrow.
