54 34 194 Removing and installing/replacing middle stowage lock

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

WARNING: For all repair work, secure soft top with a suitable support tool against collapsing.
Ensure soft top is supported in the middle.

Unscrew nuts (1).

Tightening torque 54 34 11AZ .

Remove middle stowage lock (2) with a retaining bracket (3).

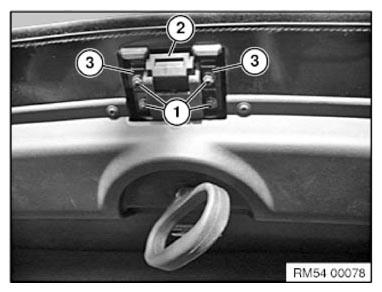

Fig 1: Identifying Middle Stowage Lock, Retaining Bracket, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
