54 34 193 Removing and installing/replacing the middle locking hook

Necessary preliminary tasks:

• Remove UPPER PARTITION TRIM PANEL

Release screws (1).

Tightening torque 54 34 13AZ .

Remove locking hook.

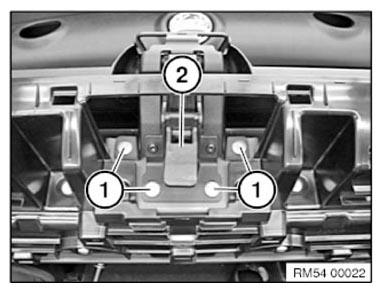

Fig 1: Identifying Locking Hook And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
