54 34 140 Removing and installing or replacing the base plate on left or right

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release screw (1).

Tightening torque 54 34 03AZ .

Detach windscreen sealing in marked area.

Installation note:

Ensure that the windscreen sealing is correctly installed in the marked area.

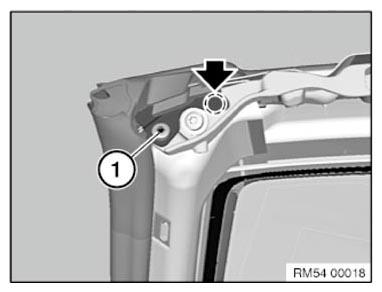

Fig 1: Locating Windscreen Sealing Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

To release right screw (1), carefully pull cover (2) downward.

Tightening torque 54 34 03AZ .

Remove base plate (3).

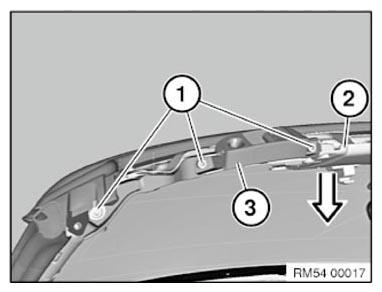

Fig 2: Removing Base Plate

Courtesy of BMW OF NORTH AMERICA, INC.
