41 21 003 Replacing A-pillar with reinforcement on left

WARNING: This page is about a different variant/trim than selected.

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Refer to SPOT-WELD BONDING STEEL COMPONENTS and OPENING BONDED CONNECTIONS .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Observe procedure of REPAIR STAGE 3 .

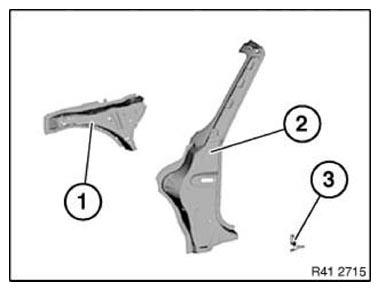

Following new body parts are required:

(1) Carrier support, wheel arch, front
(2) A-pillar, outer
(3) Attachment, sill

Following CONSUMABLES are required:

Fig 1: Identifying Carrier Support, A-Pillar And Sill Attachment

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5a	1
Blind rivets N1	14
EMC screws	1
Cavity sealing wax remover
Cleaning agent R1	1
Sealant D1

Removing the A-pillar

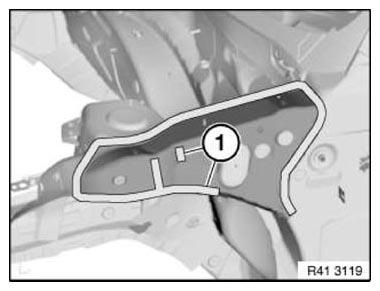

Open welded connections in areas (1).

Fig 2: Identifying A-Pillar Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

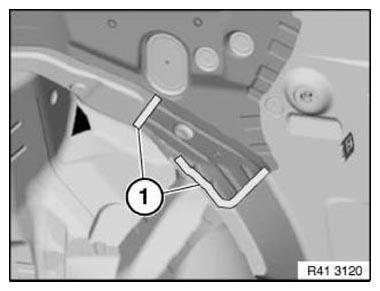

Open welded connections in areas (1).

Remove support carrier.

Fig 3: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

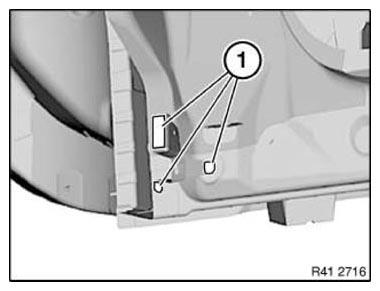

Open welded connections in areas (1).

Installation note:

Position sill attachment after painting on body.

Fig 4: Identifying Body Sill Attachment Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

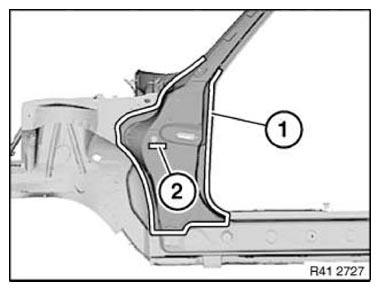

Open spot-welded adhesive joints in area (1) and welded connections in area (2).

Fig 5: Identifying Spot-Welded Adhesive Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

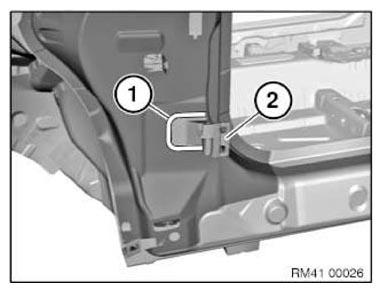

Separate MAG-welded joints in area (1) and remove door hinge (2).

Fig 6: Identifying Door Hinge MAG-Welded Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Separate 2 welded joints in area (1) of the hinge mounting surface.

Installation note:

Replace welded connections in area (1) by 3 additional plug welding welds in area (2).

Fig 7: Identifying Areas Of Welded Connections And Plug Welds

Courtesy of BMW OF NORTH AMERICA, INC.

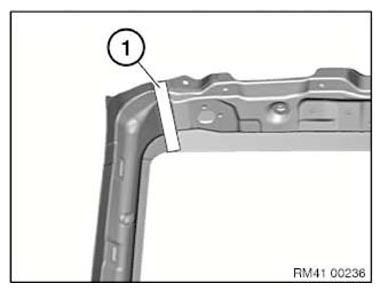

Open welded connections in area (1).

Fig 8: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

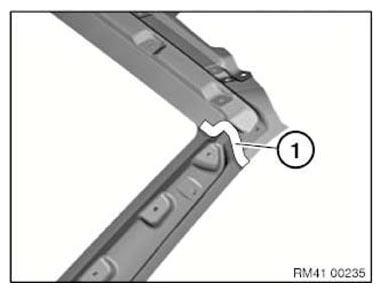

Open welded connections in area (1).

Fig 9: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Fig 10: Identifying Door Post Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Take off door post.

Fig 11: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Adjust new parts to fit with alignment bracket or universal mounting.

Repair stage 2:

Adjust new support beam to fit and secure.

Set eleven 6.7 mm dia. holes for blind rivets in area (1).

Fig 12: Identifying Area For Blind Rivet Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Set 3 6.7 mm dia. bore holes for blind rivets in area (1).

Remove new part again and deburr bore holes.

Fig 13: Identifying Areas For Blind Rivet Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Door post installation

Adjust new parts with alignment bracket or universal mount and weld.

Repair stage 2:

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces (1).

Fig 14: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Mount support carrier and rivet with blind rivets (1).

Fig 15: Identifying Riveting Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rivet support carrier with blind rivets (1).

After adhesive has hardened in area (1), fit an EMC SCREW .

Fig 16: Identifying Riveting Area

Courtesy of BMW OF NORTH AMERICA, INC.
