41 34 040 Stripping operation - Replacing outer part and inside middle part of tail panel

WARNING: This page is about a different variant/trim than selected.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Remove negative battery cable (job number: 61 20 900)
Completely remove exhaust system (job number: 18 00 020)
Remove heat shield for rear silencer
Remove bumper trim (job number: 51 12 156)
Remove bumper support (job number: 51 12 050)
Remove tail panel cover at top (job number: 51 46 050)
Remove luggage compartment floor trim panel (job number: 51 47 101)
Remove and install left and right luggage compartment wheel arch panels (job number: 51 47 151)
Remove rear left and right wheel arch cover (job number: 51 71 041)
Partially detach tailgate seal

Disconnect connector (1).

Release screws (2) and remove lock (3).

Tightening torque 51 24 1AZ .

Remove tailgate vents (4).

Fig 1: Identifying Tailgate Vents And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Loosen the nuts and remove control unit (2).

Release wiring harness (3) and place to one side.

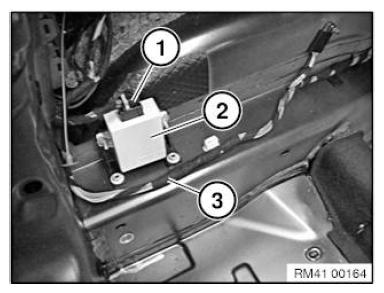

Fig 2: Identifying Control Unit, Wiring Harness And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Loosen the nuts and remove control units (2).

Release wiring harness (3) and place to one side.

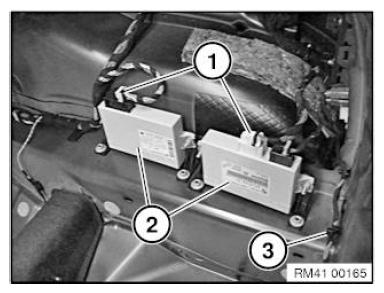

Fig 3: Identifying Control Units, Wiring Harness And Connector

Courtesy of BMW OF NORTH AMERICA, INC.
