51 43 030 Removing and installing/replacing cover on rollover bar, front left or right

WARNING: This page is about a different variant/trim than selected.

If necessary, remove wind deflector.

Release screws (1) and remove holder (2).

Tightening torque 51 43 6AZ .

Unclip covers (3) towards rear.

Installation note:

Latch mechanisms on covers (3) must not be missing or damaged.

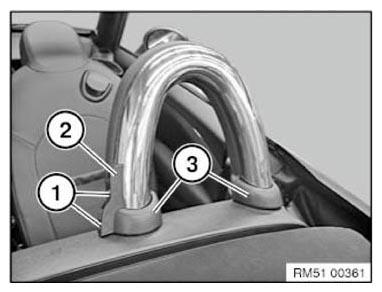

Fig 1: Identifying Holder, Screws, And Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Release cover (1) from clips (2) in direction of arrow.

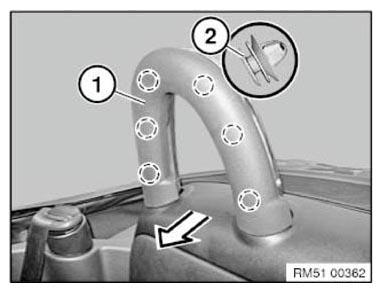

Fig 2: Releasing Cover From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) and latch mechanisms (2) must not be missing or damaged.

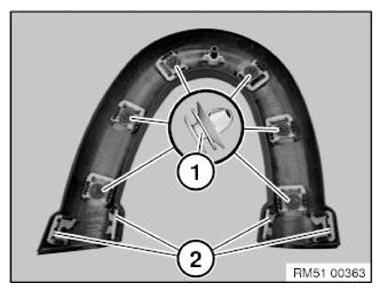

Fig 3: Identifying Clips And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
