51 12 825 Removing and installing/replacing guide for rear center bumper

Necessary preliminary tasks:

• Remove REAR BUMPER TRIM

Feed guide (1) out of holder (2).

Release screw (3) and remove holder (2).

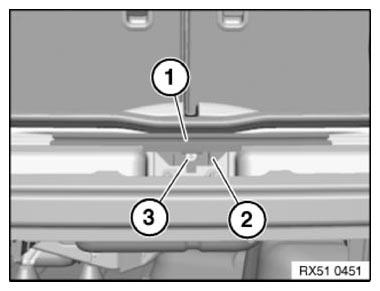

Fig 1: Identifying Holder, Guide, And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
