51 46 100 Removing and installing/replacing reinforcement on upper partition wall

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release screws (1).

Release side trim panel from reinforcement (2).

Release reinforcement (2) from clips (3) and feed out towards top.

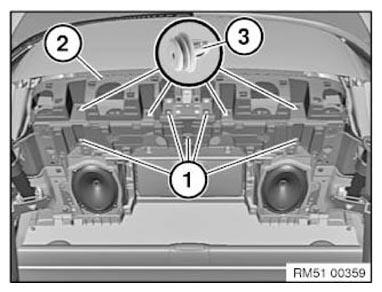

Fig 1: Identifying Reinforcement And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clamps (1).

Guides (2) must not be missing or damaged.

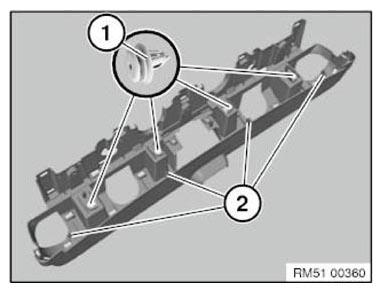

Fig 2: Identifying Clamps And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
