51 71 426 Removing and installing/replacing panel for cover on left or right side member

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release clamps (1).

Installation note:

Replace faulty clamps (1).

Fig 1: Identifying Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and threaded blind rivets (2).

Installation note:

Replace faulty screw rivets (2).

Fig 2: Identifying Screw And Threaded Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release panel (1) at clips (2) and remove.

Fig 3: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clamps (1 and 2).

Fig 4: Identifying Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

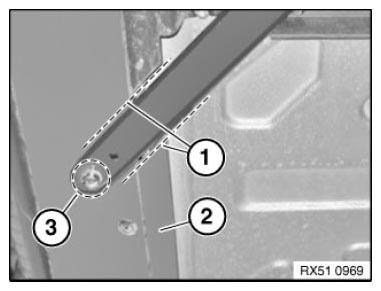

If necessary, subsequently cut out aperture (1) and bore hole (3) for outer strut of cross reinforcement at trim panel (2).

Fig 5: Identifying Trim Panel, Aperture, And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.
