51 11 152 Remove and install/replace the center spoiler on bumper panel

Necessary preliminary tasks:

• Remove FRONT BUMPER PANEL

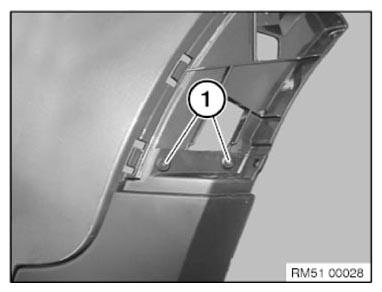

Release left and right expanding rivets (1).

Installation note:

Replace expanding rivets.

Fig 1: Identifying Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) and remove spoiler (2).

Installation note:

Latch mechanisms (1) must not be damaged.

Fig 2: Identifying Spoiler And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Modify air guide(s)
