51 37 330 Removing and installing/replacing left or right trim strip on rear side panel
WARNING: This page is about a different variant/trim than selected.

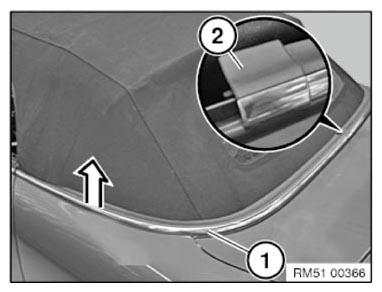

Pull off trim strip (1) from side wall towards top beginning at the front.
Pull out trim strip (1) from connecting clip (2).
Installation note:
Firstly feed in trim strip (1) into connecting clip (2) the connect to side wall.
Front of trim strip (1) must be flush with side wall.
Installation note:

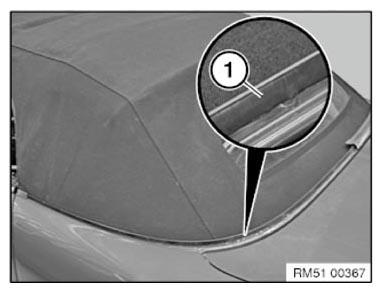

Make sure welt strip (1) is correctly fitted on body.
Installation note:

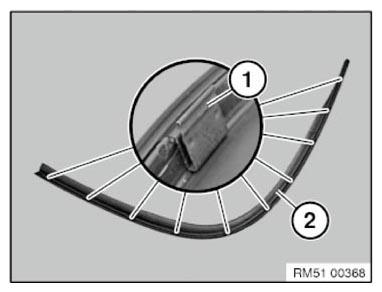

Clamps (1) on trim strip (2) must not be missing or damaged.
Position trim strip (2) correctly on side wall with clamps (1) press on it.
