72 11 033 Removing and installing/replacing front left or right seat belt
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove side trim panel
Installation note:
- Powerlok screws (Duo Taptite) must be replaced and must not be reused
- Powerlok screws (Duo Taptite) are mechanical thread fasteners with trilobular threads

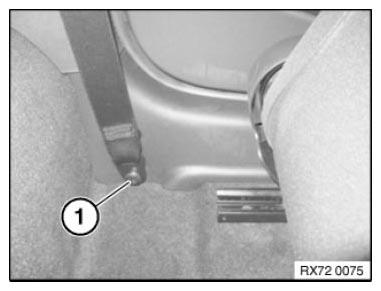

Release screw (1).
Installation note:
Replace screw (1).
Tightening torque 72 11 04AZ .

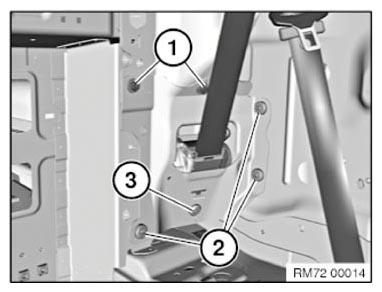

Release oval-head screw (3) from automatic belt real.
Installation note:
Renew oval-head screw (3).
Tightening torque 72 11 02AZ .
Release hexagon screws (1).
Tightening torque 72 11 16AZ .
Release oval-head screws (2) from automatic belt real holder.
Tightening torque 72 11 16AZ .
Remove automatic belt reel.
Installation note:
Automatic belt reel is encoded against incorrect assembly.
Encoding must be seated in recess of automatic belt reel holder.
