67 11 555 Removing and installing/replacing actuator drive for fuel filler flap

Necessary preliminary tasks:

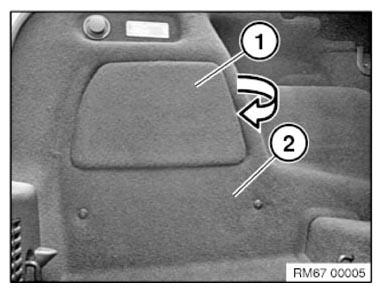

Open flap (1) of left luggage compartment wheel arch panel (2) in direction of arrow.

Fig 1: Opening Left Luggage Compartment Wheel Arch Panel Flap

Courtesy of BMW OF NORTH AMERICA, INC.

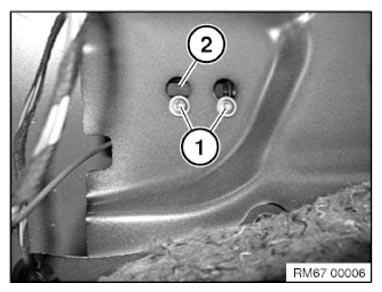

Slacken screws (1) and unlock and disconnect corresponding plug connection.

Slightly move the actuator drive (2) up and feed out through the rear light opening.

Fig 2: Identifying Actuator Drive And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed into the rear side wall through the rear light opening.

Insert the actuator drive (1) with locking pin (2) in gaiter (3).

Fig 3: Inserting Tank Filler Flap Servodrive With Locking Pin Into Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

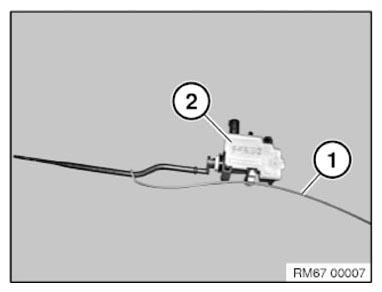

Feed emergency operation (1) of locking pin actuator drive (2) out.

Fig 4: Identifying Locking Pin Actuator Drive Emergency Operation

Courtesy of BMW OF NORTH AMERICA, INC.
