41 00... Body Gap Dimensions

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm

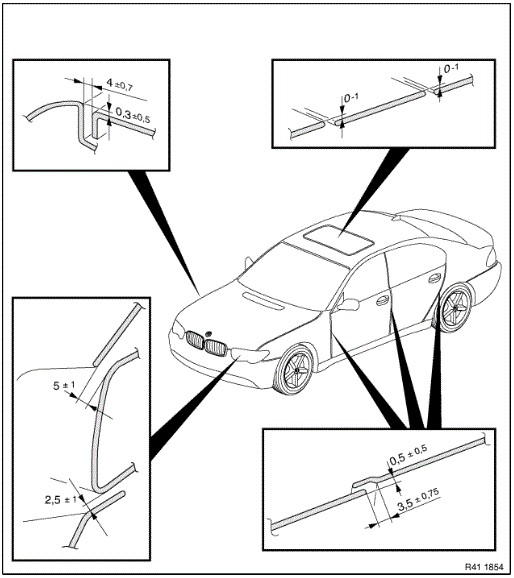

Fig 1: Front Exterior Body Panel Gap Dimensions And Measurement Points (Front View)
G00673478Courtesy of BMW OF NORTH AMERICA, INC.

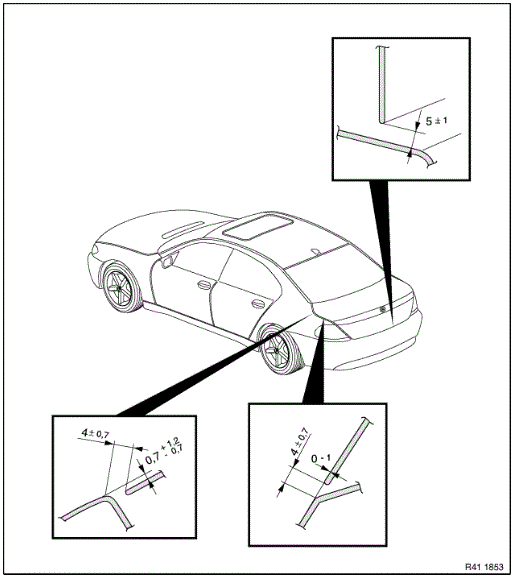

Fig 2: Rear Exterior Body Panel Gap Dimensions And Measurement Points (Rear View)
G00673479Courtesy of BMW OF NORTH AMERICA, INC.
