335200 Fixture

NOTE: F or holding rear axle final drive during removal and installation. This mounting replaces mounting 33 4 420

SI number: 01 01 07 (333)

Consisting of:

1 = 0496019 Joint

2 = 0496020 Frame

NOTE: (Main frame)

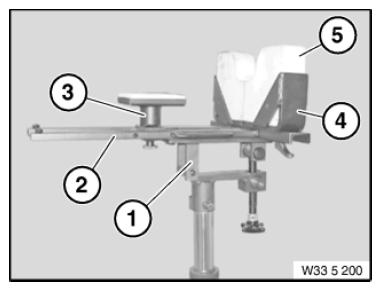

Fig 1: Identifying Fixture (335200)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0496077 Upholstery

4 = 0496078 Fixture

NOTE: (Fixture for foam material insert) Discontinued, only available via complete tool

5 = 0496079 Insert

NOTE: (Insert) Foam material insert (1 set = 2 pieces)

5 = 0496080 Belt

NOTE: (Tensioning strap)
