330180 Device

Minimum set: Mechanical tools AM

NOTE: To remove and install the rubber mount for the rear axle differential in the rear axle differential carrier.

Storage Location: B88

SI number: 01 02 11 (683)

Consisting of:

1 = 2220325  Bush

NOTE: Special tool 33 0 180 to remove and install the rubber mount for the rear axle differential in the rear axle differential carrier.

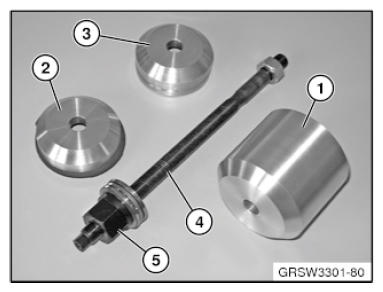

Fig 1: Identifying Device (330180)
G11011462Courtesy of BMW OF NORTH AMERICA, INC.

2 = 2220327  Washer

NOTE: Special tool 33 0 180 to remove and install the rubber mount for the rear axle differential in the rear axle differential carrier.

3 = 2220328  Washer

NOTE: Special tool 33 0 180 to remove and install the rubber mount for the rear axle differential in the rear axle differential carrier.

4 = 2220330  Spindle

NOTE: Special tool 33 0 180 to remove and install the rubber mount for the rear axle differential in the rear axle differential carrier.

5 = 2220331  Nut

NOTE: Special tool 33 0 180 to remove and install the rubber mount for the rear axle differential in the rear axle differential carrier.
