2208577 Spindle

AM

NOTE: M18 threaded spindles for removing and installing the rubber mount on the rear axle support. Contained in threaded spindle set 81642208573. Threaded spindles M18 cannot be ordered separately.

SI number: 08 06 10 (658)

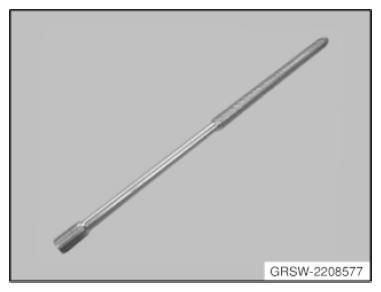

Fig 1: Identifying Spindle (2208577)
G11011483Courtesy of BMW OF NORTH AMERICA, INC.
