63 21 170 Removing and installing/replacing left or right rear light

Necessary preliminary work:

• Partially remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL

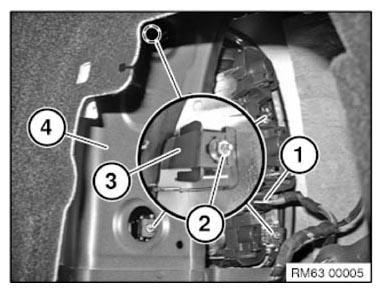

Unfasten plug connection (1) and disconnect.

Slacken nuts (2) until clamping claw (3) can be routed past side wall (4).

Installation note:

Make sure clamping claw (3) is correctly seated on side wall (4).

Fig 1: Identifying Plug Connection Clamping Claw, Side Wall And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

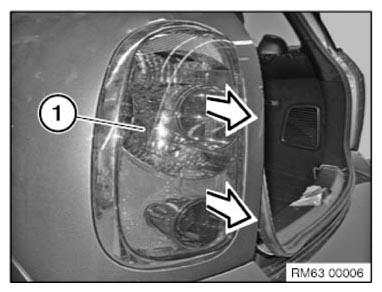

Carefully remove rear light (1) in direction of arrow.

Fig 2: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• If necessary, remove BULBS .
