41 00... Frame Alignment Control Body Dimensions

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm.

Measurement tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the straightening attachment.

The specified dimensions/measurements always refer to the center point of the bore/screw.

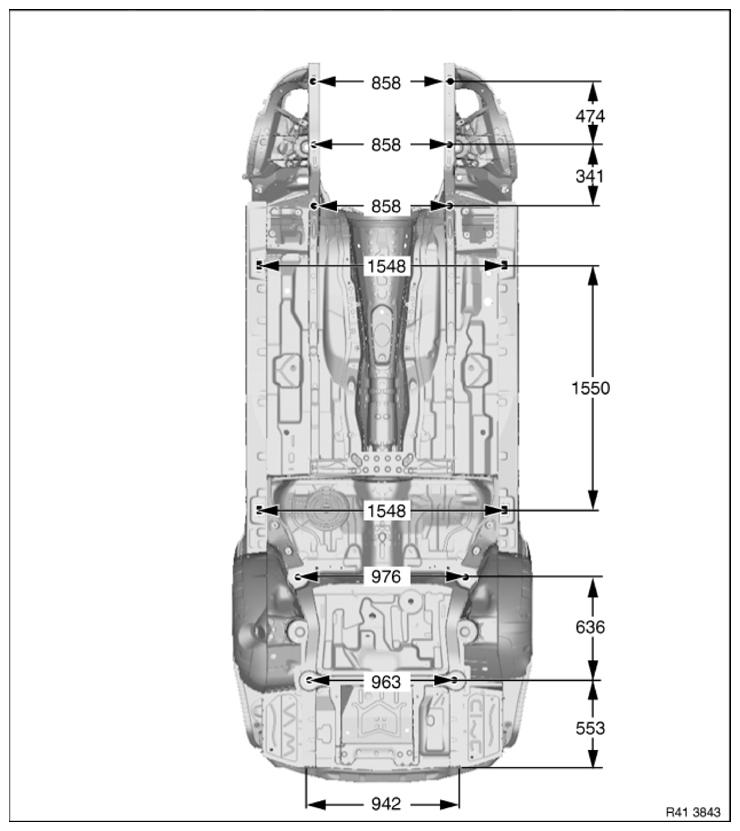

Under Body View 1

Fig 1: Under Body Frame Alignment Control Dimension And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

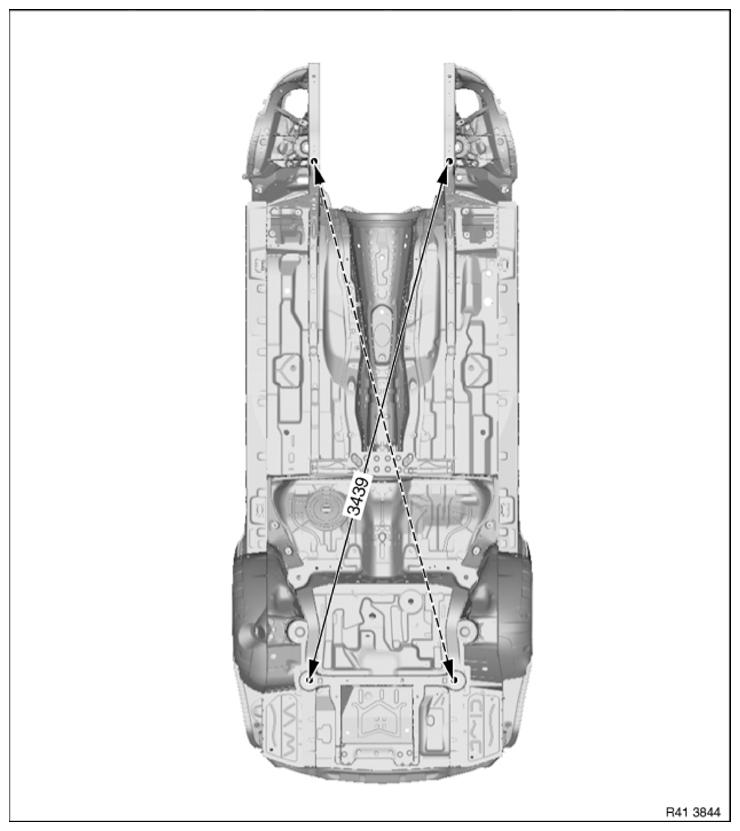

Underbody view 2

Fig 2: Under Body Frame Alignment Control Dimension And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

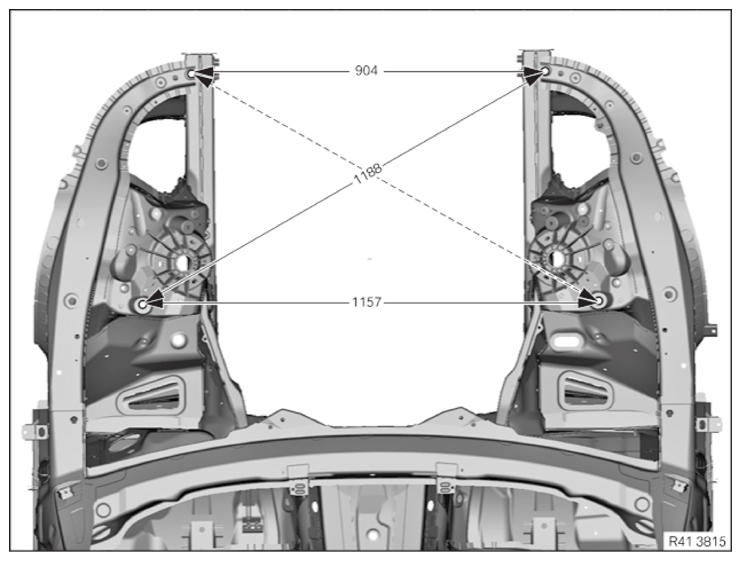

Top View, Front End

Fig 3: Front Body Frame Alignment Control Dimension And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

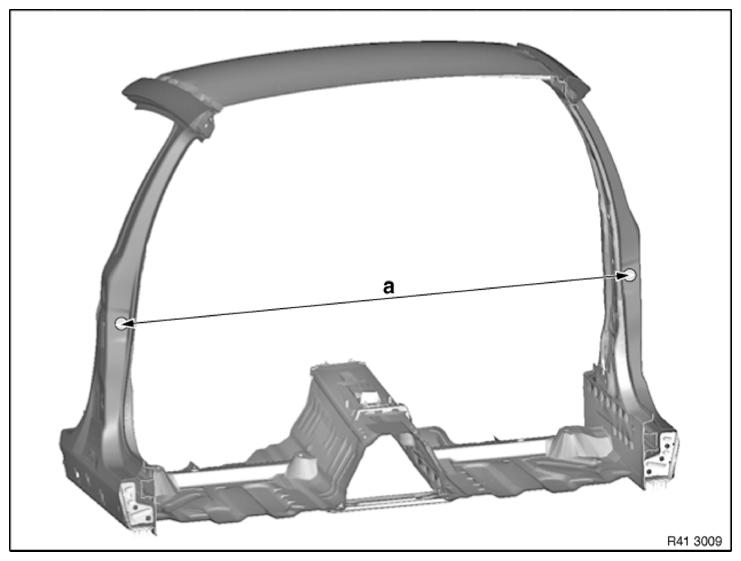

View, B-pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1628 mm between screw-on points of door brakes.
