41 00... Body Gap Dimensions

The dimensions specified in this service information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

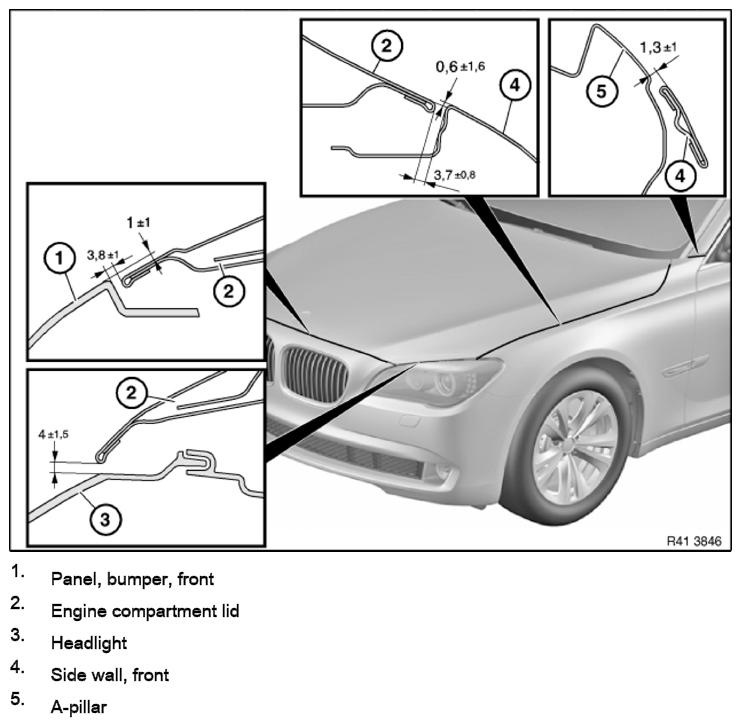

Fig 1: Front Bumper, Hood, Head Lamp, Front Fender And Front Pillar Body Gap Dimension And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

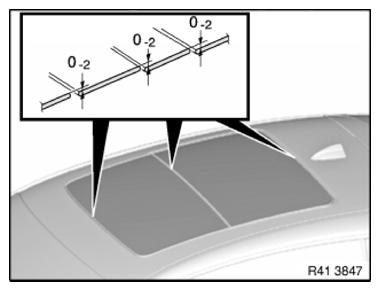

Fig 2: Roof Panel And Moon Roof Panel Body Gap Dimension And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

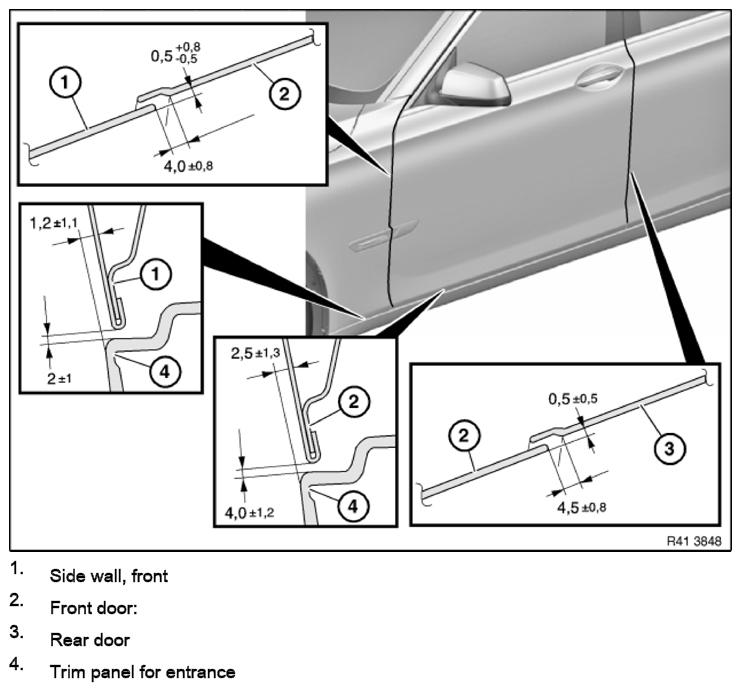

Fig 3: Front Fender, Front Door, Rear Door And Sill Trim Panel Body Gap Dimension And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

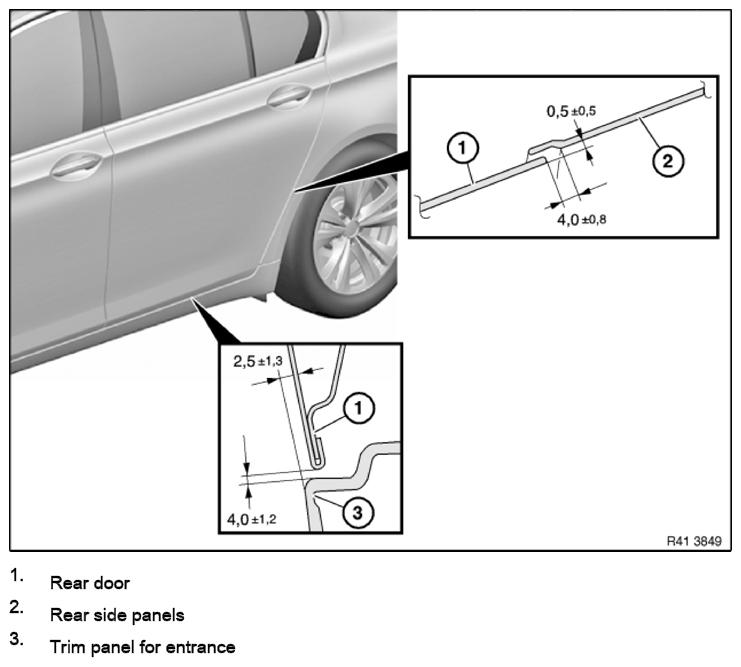

Fig 4: Rear Door, Quarter Panel And Sill Trim Panel Body Gap Dimension And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

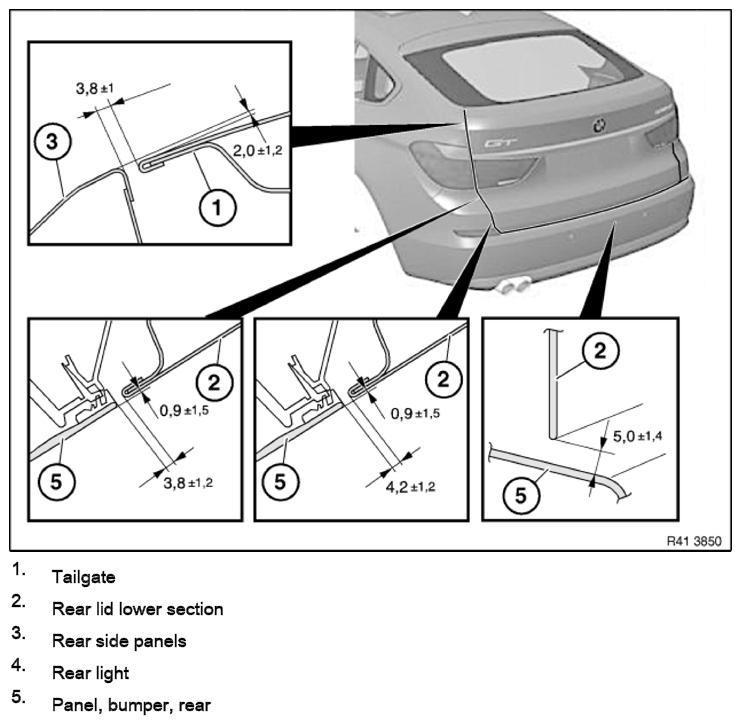

Fig 5: Tailgate, Quarter Panel, Tail Lamps And Rear Bumper Body Gap Dimension And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
