51 42 000 Removing And Installing Left Or Right Rear Door Trim Panel

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317
00 9 322

WARNING: Model With Side Airbag: Side airbag is mounted on door trim panel. Disconnect battery. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

IMPORTANT: Do not use any sharp-edged removal tools, risk of damage to airbag.

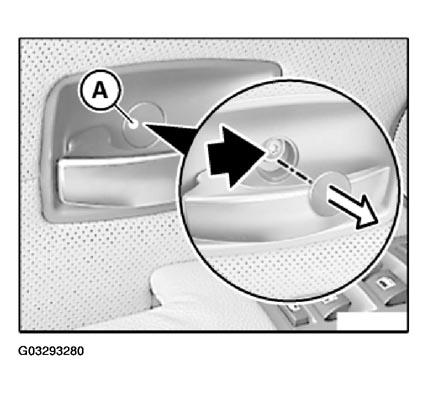

Press on point (A) and tilt out cover.

Release screw underneath.

Installation:

Tightening torque, refer to 51 21 6AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

IMPORTANT: Replace damaged screws and nuts.

Fig 1: Locating Retaining Screw Under Cover

Courtesy of BMW OF NORTH AMERICA, INC.

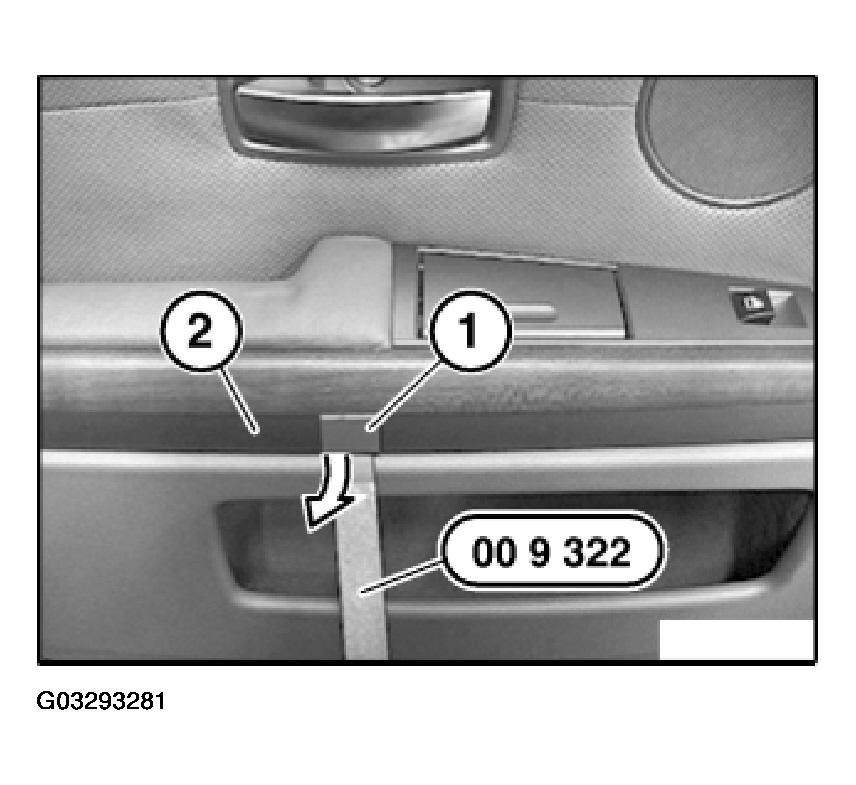

Carefully lever caps (1) with special tool 00 9 322 out of door trim panel (2).

Fig 2: Removing Caps From Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Tightening torque, refer to 51 42 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

NOTE: Start unclipping at bottom.

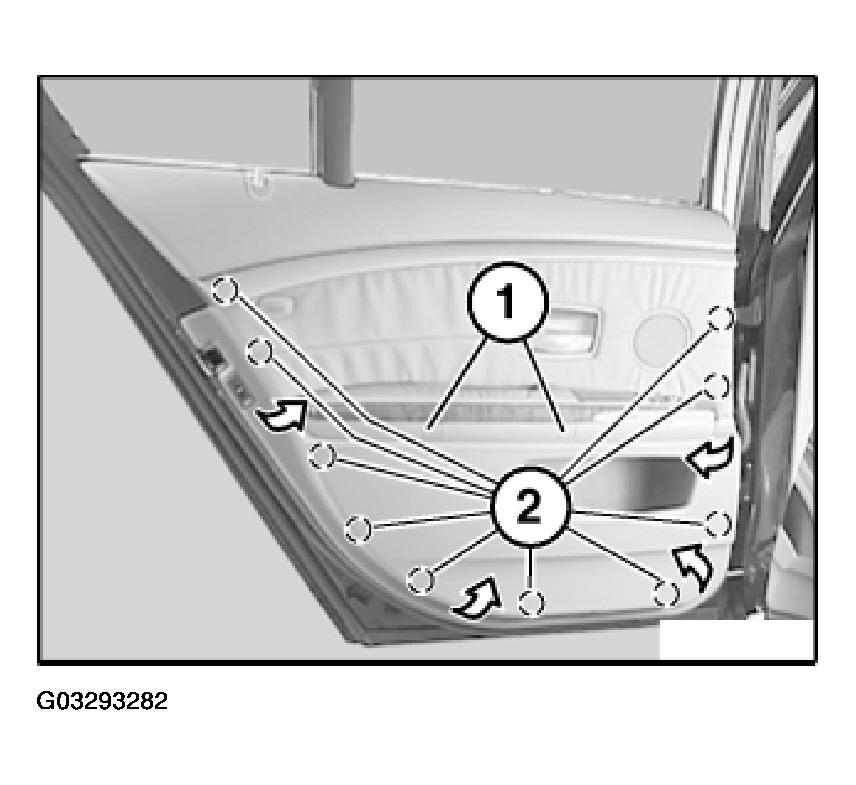

Unclip clips (2) of door trim with special tool 00 9 317.

Fig 3: Locating Door Trim Clips

Courtesy of BMW OF NORTH AMERICA, INC.

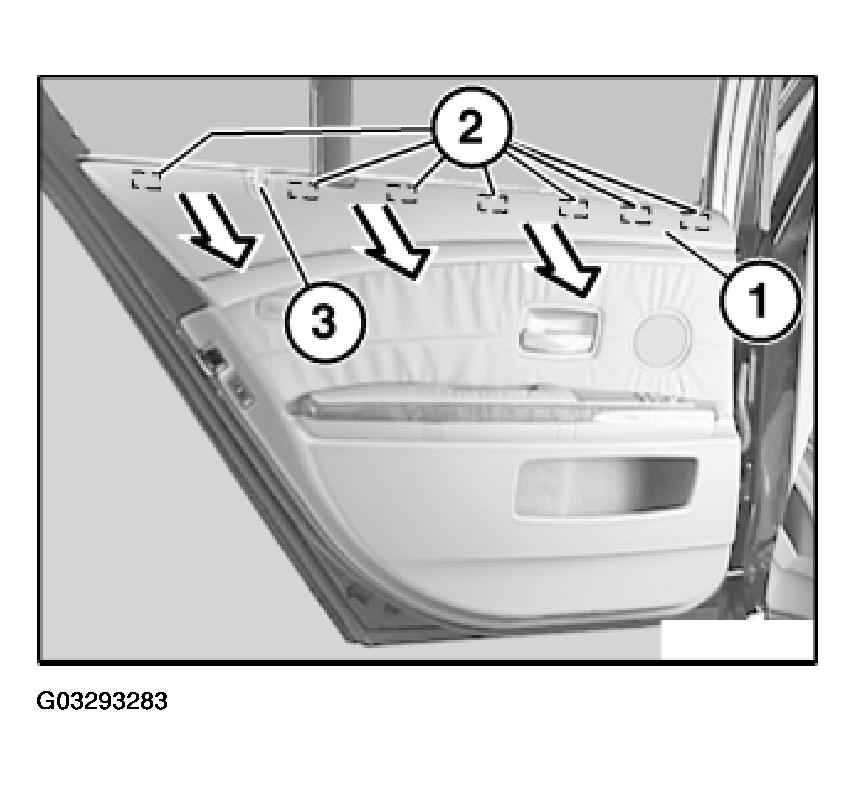

Carefully unclip door trim panel (1) at top from retainers (2).

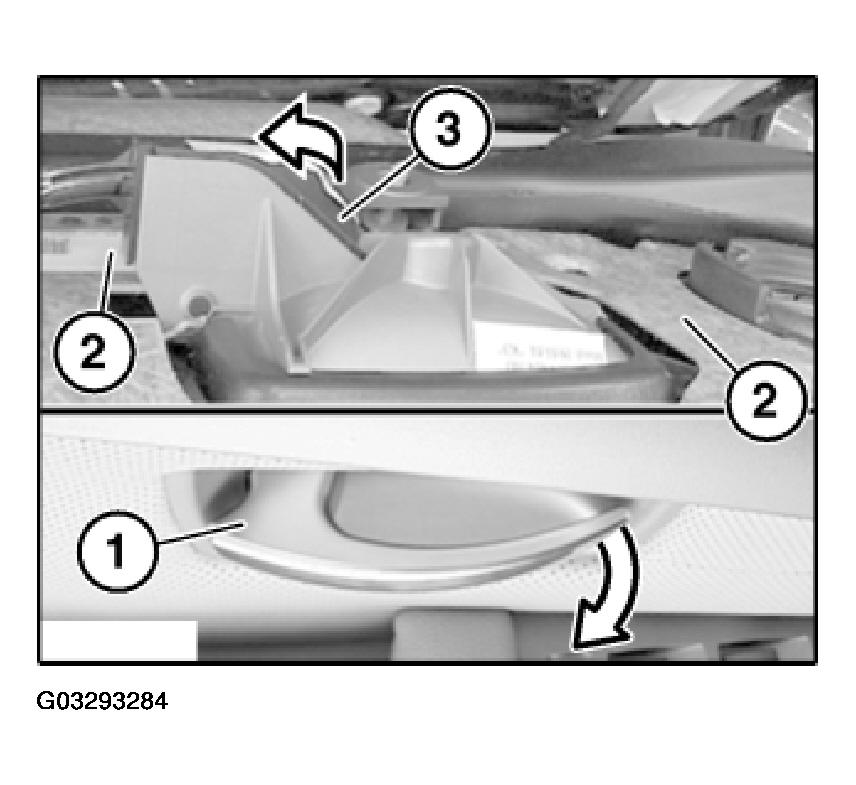

Feed out door trim (1) from unlocking knob (3).

Fig 4: Identifying Door Trim Panel Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable for release lever:

Tighten release lever (1).
Lever out lock (2).
Detach Bowden cable (3) towards rear/top.

Installation:

For fitting, press release lever (1) fully onto door trim panel.

Fig 5: View Of Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Model with side airbag: Disconnect plug connection on side airbag.

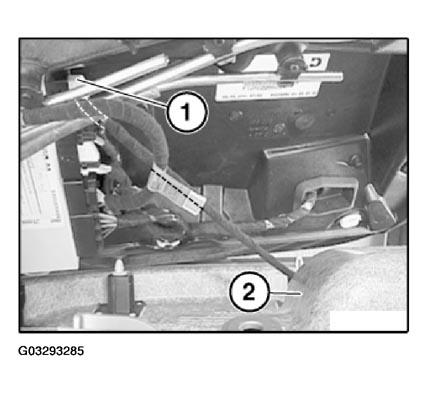

Unlock plug connection (1) and disconnect from control unit.

Remove door trim panel (2).

Fig 6: Identifying Plug Connection And Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

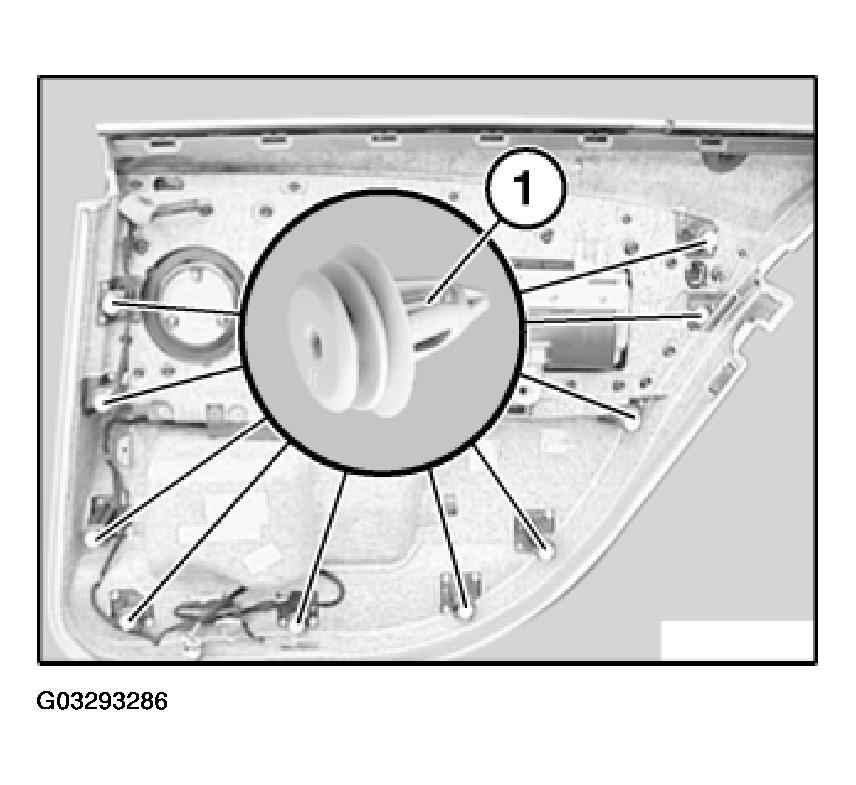

All clips (1) are white.

If necessary, replace faulty clips (1).

IMPORTANT: Make sure airbag badge is correctly fitted (risk of injury in event of airbag deployment). Refer to 51 42... REPLACING AIRBAG BADGE ON REAR LEFT OR RIGHT DOOR TRIM PANEL .

Fig 7: Locating Trim Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open door window.
Lock with vehicle key.
Check for ease-of-movement on retaining button linkage.
If necessary, align linkages.
