51 45 181 Removing And Installing Instrument Panel Trim At Bottom Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Lower trim (2) slightly.

Fig 1: Removing Instrument Panel Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug (4) from footwell light (5).

Remove trim (3).

Installation:

Slide trim (3) with guides (2) into mountings (1).

Replacement Only :

Lever out footwell light (5).

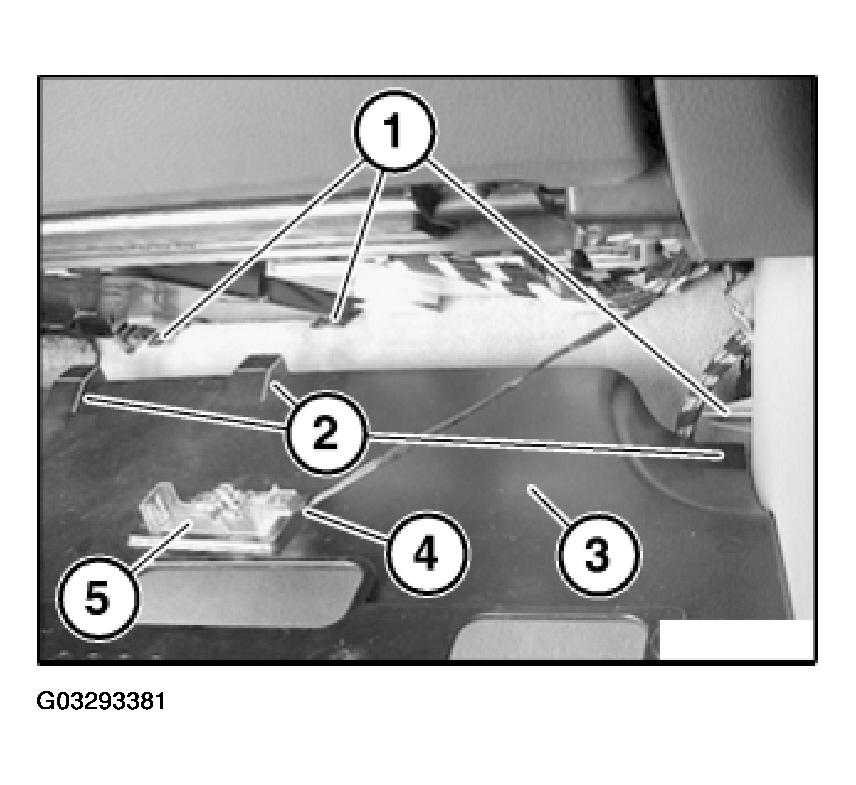

Fig 2: Disconnecting Plug From Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.
