51 41 000 Removing And Installing Left Or Right Front Door Trim Panel

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317
00 9 322

WARNING: Side airbag is mounted on door trim panel: Disconnect battery. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

IMPORTANT: Do not use any sharp-edged removal tools, risk of damage to airbag.

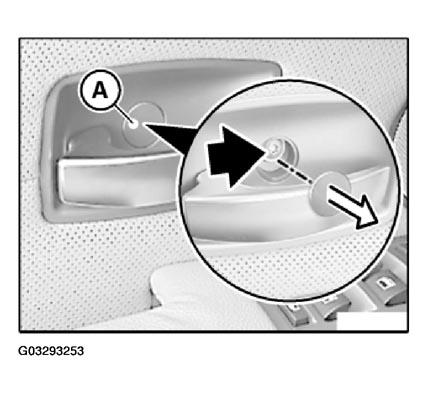

Press on point (A) and tilt out cover.

Release screw underneath.

Installation:

Tightening torque, refer to 51 21 6AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

IMPORTANT: Replace damaged screws and nuts.

Fig 1: View Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

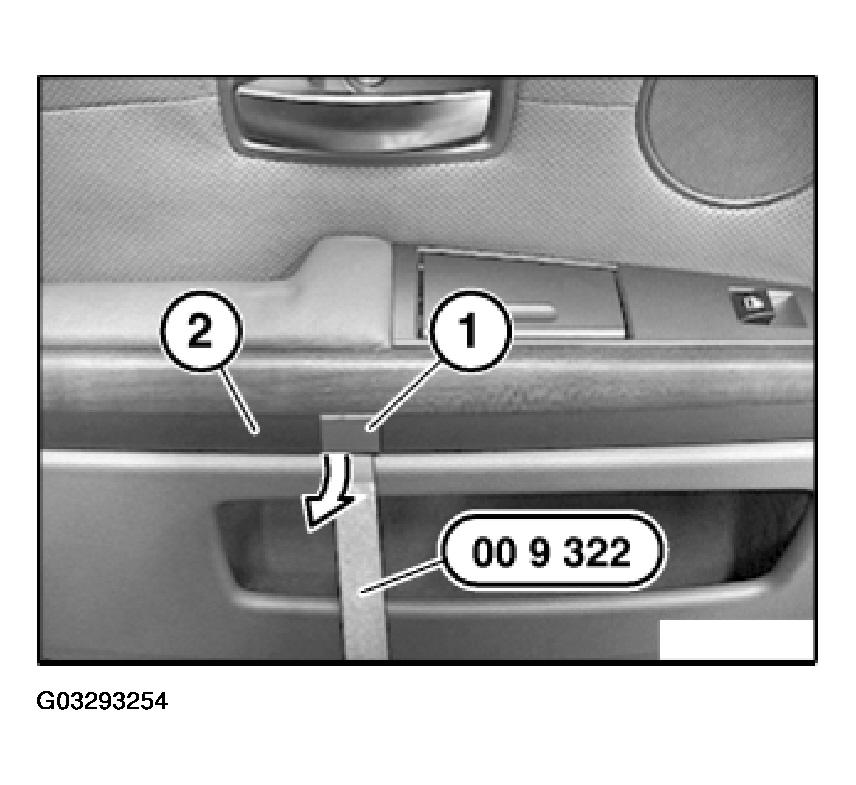

Carefully lever caps (1) with special tool 00 9 322 out of door trim panel (2).

Fig 2: Identifying Caps In Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

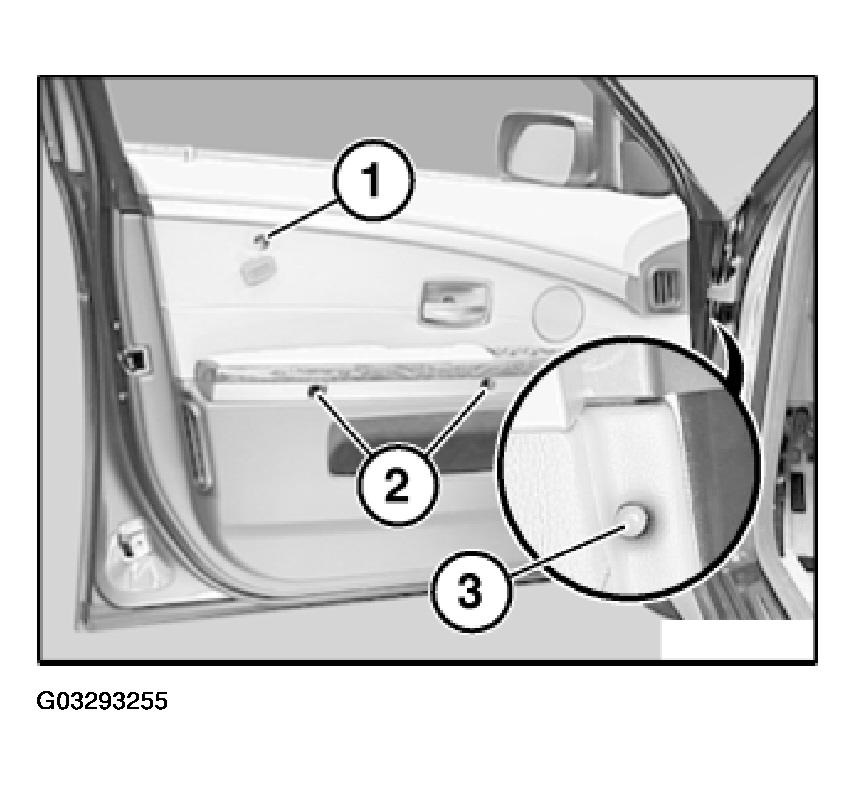

Lever out airbag emblem (1) and release screw underneath.

Tightening torque, refer to 51 41 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Loosen screws (2).

Tightening torque, refer to 51 41 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Unfasten cap (3) and release screw underneath.

Tightening torque, refer to 51 41 4AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 3: View Of Airbag Emblem

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start unclipping at bottom.

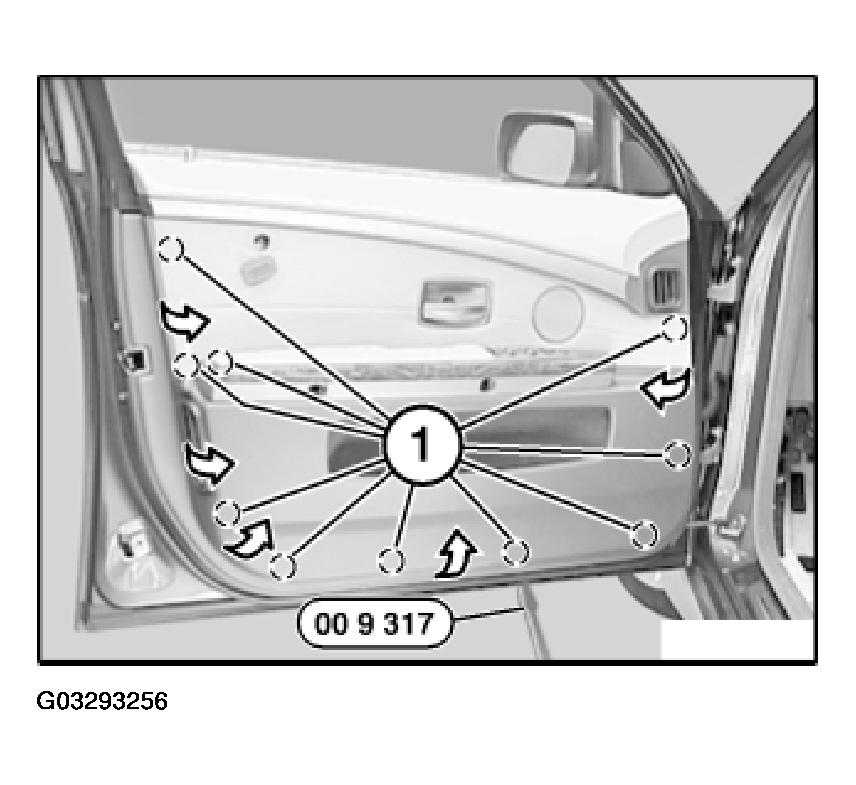

Unclip clips (1) of door trim panel with special tool 00 9 317.

Fig 4: Locating Clips Of Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

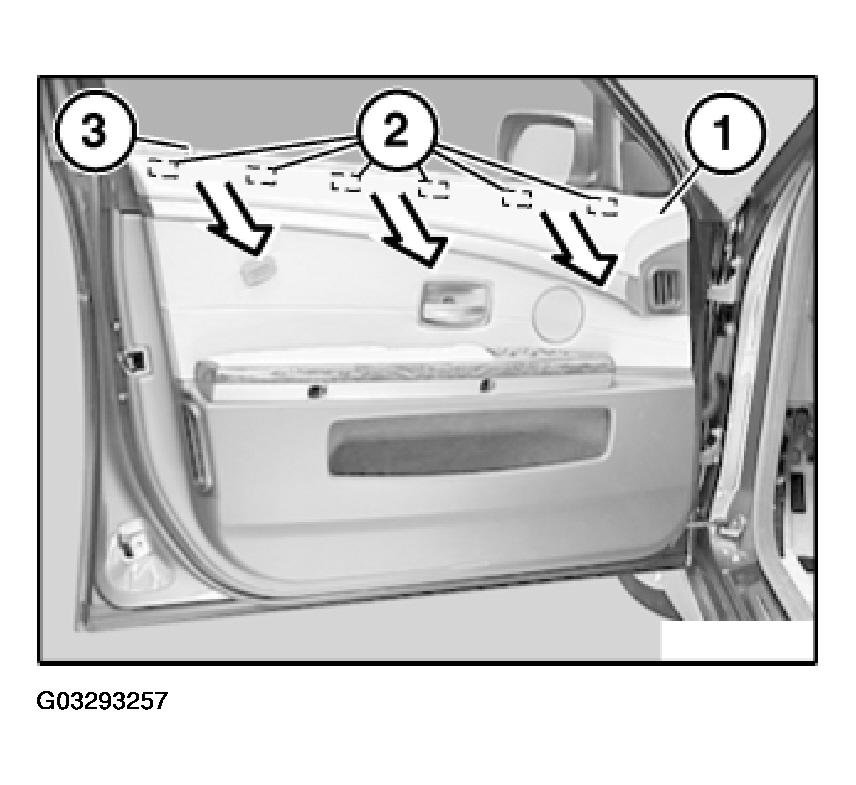

Carefully unclip door trim panel (1) at top from retainers (2).

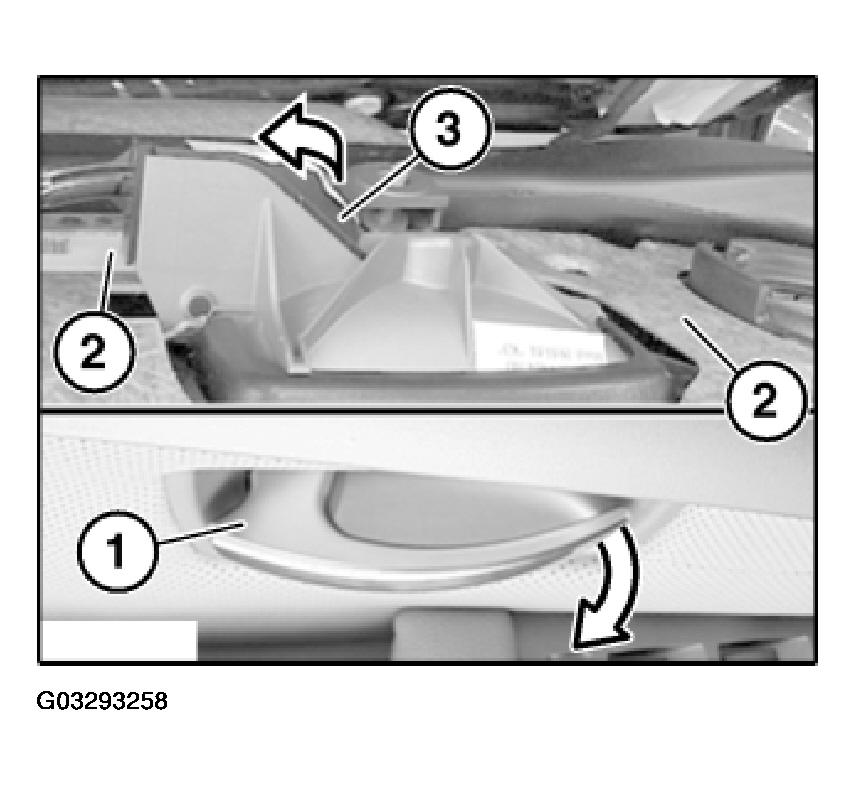

Feed out door trim (1) from unlocking knob (3).

Fig 5: Removing Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable for release lever:

Tighten release lever (1).
Lever out lock (2).
Detach Bowden cable (3) towards rear/top.

Installation:

For fitting, press release lever (1) fully onto door trim panel.

Fig 6: View Of Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Disconnect plug connection on side airbag.

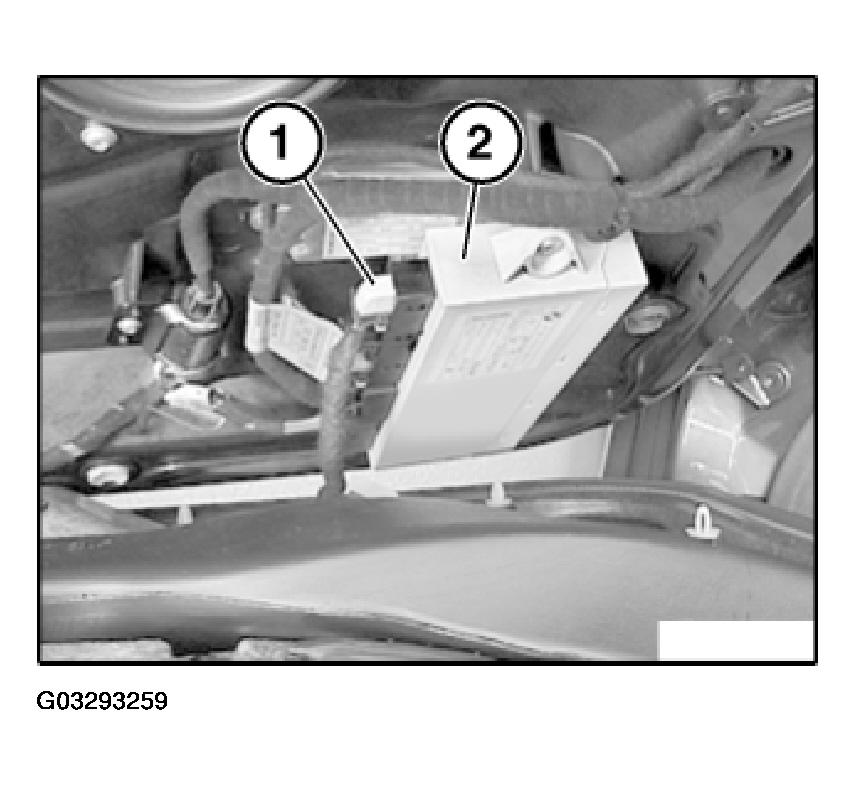

Unlock plug connection (1) and disconnect from control unit (2).

Remove door trim.

Fig 7: Locating Plug Connection And Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

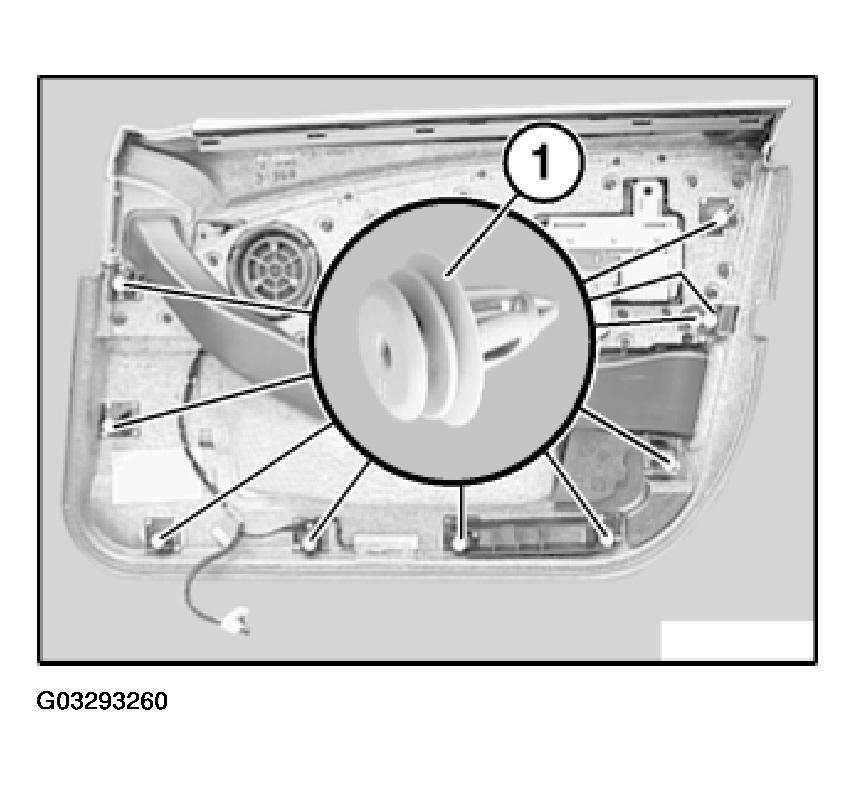

All clips (1) are white.

If necessary, replace faulty clips (1).

Fig 8: Removing White Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open door window.
Lock with vehicle key.
Check for ease-of-movement on retaining button linkage.
If necessary, align linkages.
