34 41 006 Adjusting Parking Brake

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

The parking brake test must be carried out on the roller dynamometer as follows.

Release position (engine off/ignition on ):

Wheel circumferential force right/left </= 300 N.m.

Press parking brake button (engine off/ignition on ):

Car must be pulled uniformly out of brake roller or drive of brake roller is deactivated on both sides.

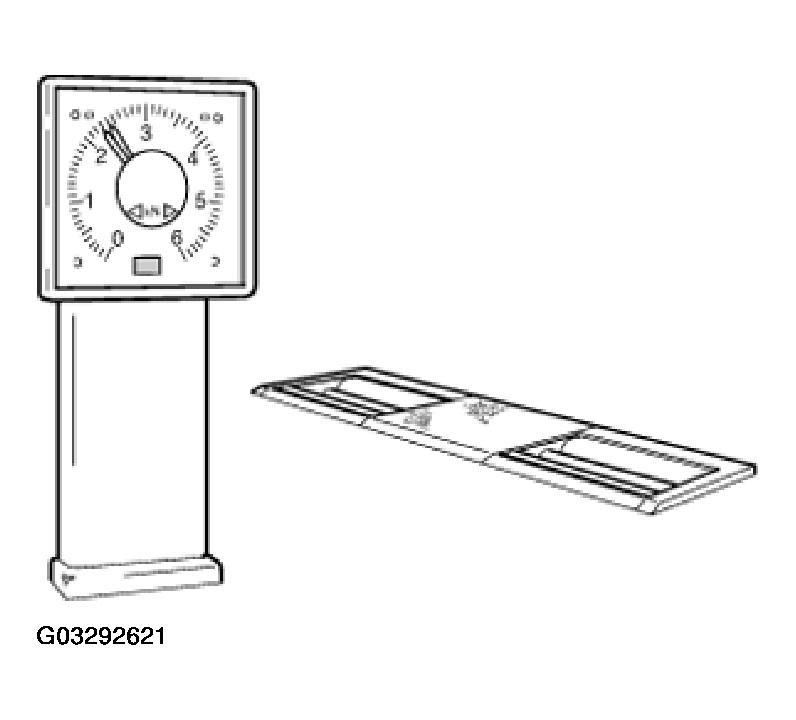

Fig 1: Identifying Roller Dynamometer
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Accurate adjustment of the parking brake is only possible if the handbrake Bowden cables and all moving parts on the handbrake move easily and function correctly.

Basic setting of the parking brake is required whenever:

After replacing brake shoes.
Brake discs are replaced.

Adjustment specification for brake shoes E65 and E66: Release parking brake (pushbutton to left of steering wheel).
Completely unscrew one wheel stud on each rear wheel. Rotate wheel until threaded bore on right wheel reaches 7 o'clock and left wheel reaches 5 o'clock setting.

Installation:

Install and tighten wheel bolt.

Tightening torque, refer to 36 10 1AZ in WHEEL AND TIRES - TIGHTENING TORQUES .

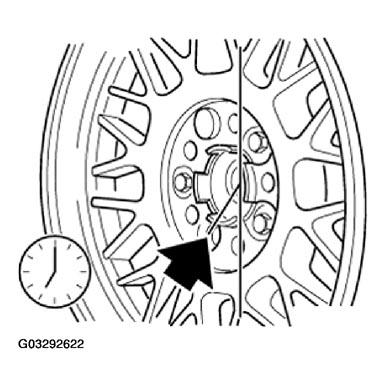

Fig 2: Locating Wheel Bolt
Courtesy of BMW OF NORTH AMERICA, INC.

Turn adjusting screw with a screwdriver until it is no longer possible to turn the wheel.

Then unfasten the adjusting screw 10 notches.

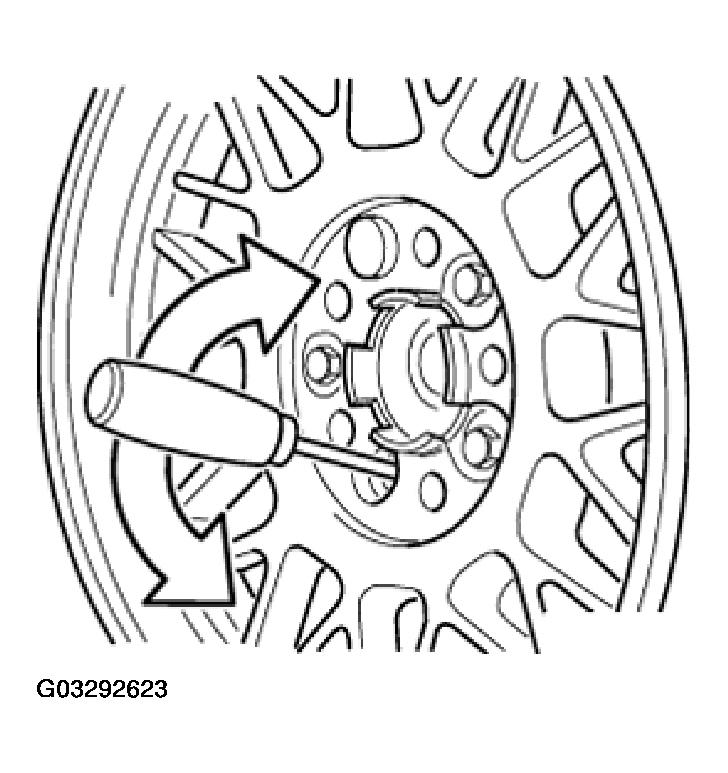

Fig 3: Turning Adjusting Screw With A Screwdriver
Courtesy of BMW OF NORTH AMERICA, INC.
Braking in duo-servo parking brake:
1. 2.1 On Roller Dynamometer:
  1. 2.1.1 Call up braking-in program via diagnosis interface using DIS Tester. (Red parking brake warning lamp in instrument cluster flashes).
  2. 2.1.2 Start braking-in procedure on roller dynamometer by pressing parking brake button with engine off/ignition on. (Red parking brake warning lamp in instrument cluster flashes rapidly).
  3. 2.1.3 Press parking brake button again after 2 minutes so that braking-in program is terminated. (Red parking brake warning lamp in instrument cluster goes out).
2. 2.2 When Road Driving (if possible on company property or an unused road):
  1. 2.2.1 Call up braking-in program via diagnosis interface using DIS Tester. (Red parking brake warning lamp in instrument cluster flashes).
  2. 2.2.2 Start braking-in procedure by pressing parking brake button while car is stationary with engine on. (Red parking brake warning lamp in instrument cluster flashes rapidly).
  3. 2.2.3 Accelerate car to approx. 40 km/h and keep speed constant over 400 m. (Braking in is automatically cancelled if speed exceeds 45 km/h).
  4. 2.2.4 Press parking brake button again so that braking-in program is terminated. (Red parking brake warning lamp in instrument cluster goes out).
