34 35 001 Replacing A Brake Lining Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
IMPORTANT:
If a brake lining sensor that has already been ground has to be replaced even though the minimum brake lining thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the ground sliding contact. Refer to SPECIFICATIONS .

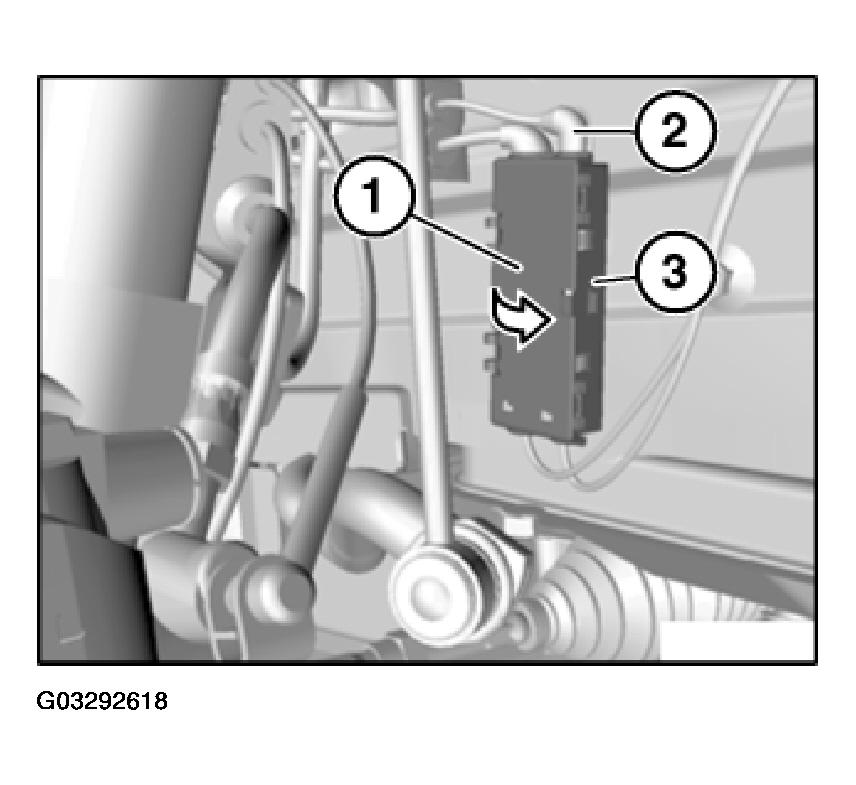

Open cover (1) on plug housing (3).
Unclip lead of brake lining sensor (2) from plug housing (3).
Disconnect associated plug connection of lead from brake lining sensor (2).
Feed lead from brake lining sensor (2) out of fixtures.

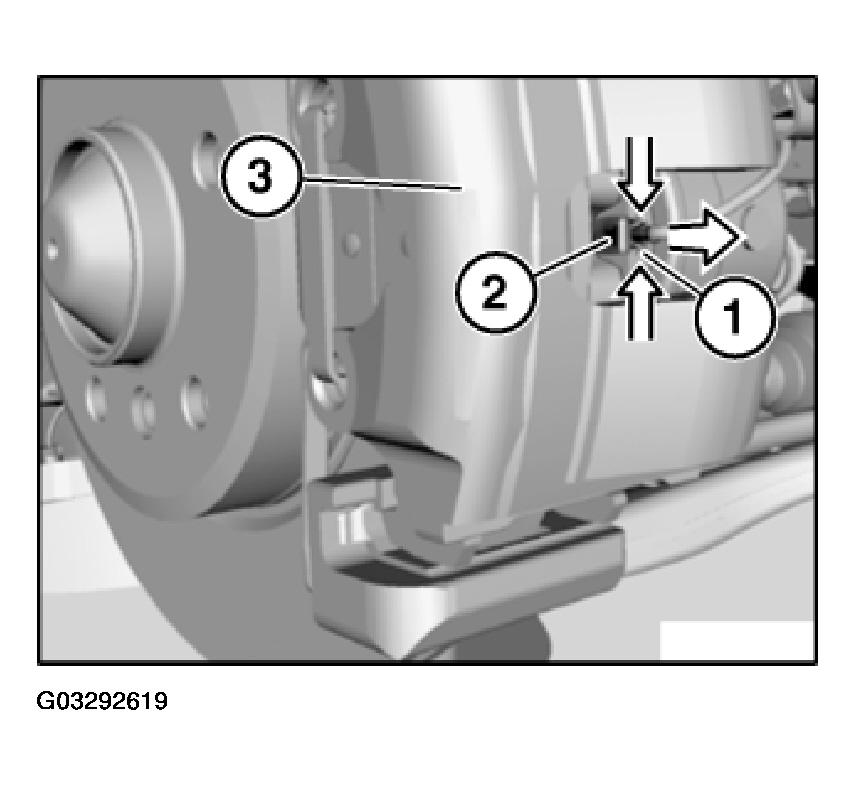

Press clip (1) together and detach brake lining sensor (2) in direction of arrow from brake caliper (3).
Installation:
Make sure clip (1) and brake lining sensor (2) are correctly seated in brake caliper (3).
Operation is the same as 34 35 001 REPLACING A BRAKE LINING SENSOR .
