32 21 151 Replacing Left Or Right Tie Rod

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the tie rod end to tie rod screw/bolt connection is released, it is necessary after reinstallation to carry out a wheel/chassis alignment check

Necessary Preliminary Tasks:

Remove front wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

IMPORTANT: Do not release tie rod end from swivel bearing with impact tool.

Rubber gaiter of tie rod end must not be damaged!

Release nut; if necessary, grip brace at Torx socket.

Remove tie rod end from swivel bearing. Refer to 32 21 151 REPLACING LEFT OR RIGHT TIE ROD .

Installation:

Keep journal on tie rod end and bore hole in swivel bearing clean and free from grease.

Replace self-locking nut.

Tightening torque, refer to 32 21 3AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

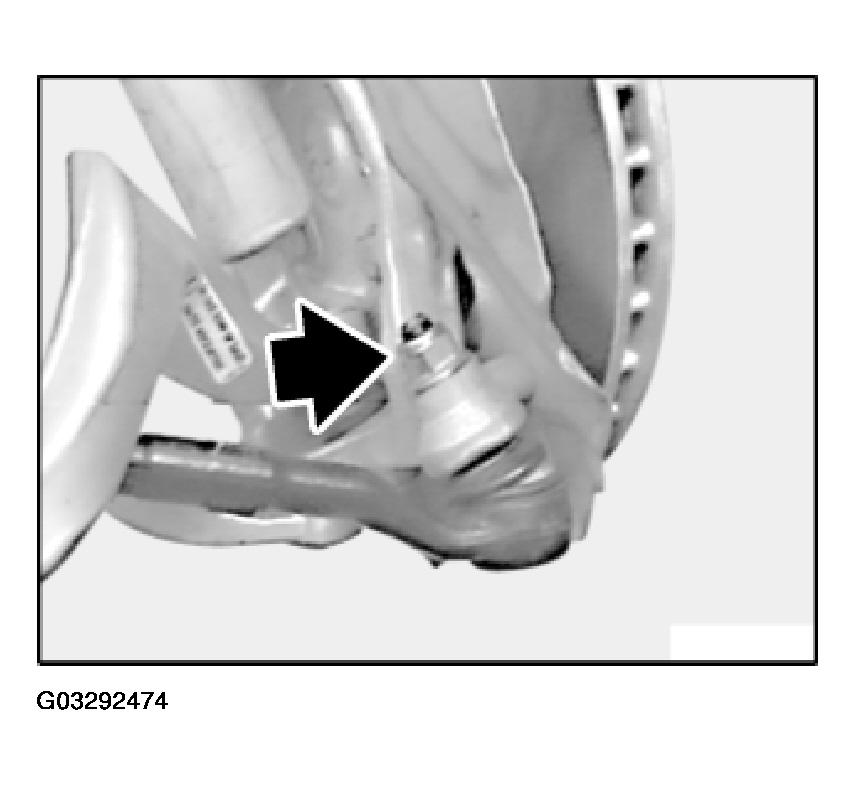

Fig 1: Tie Rod Swivel Bearing Self-Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Determine measurement (A) to simplify following adjustment of front axle.

Release clamping nut.

Screw off tie rod end; if necessary, grip tie rod with open-end wrench.

Installation:

Check gaiter, replace if necessary.

Mount clamping ring (1).

Screw in tie rod end to measurement (A).

Tightening torque, refer to 32 21 5AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

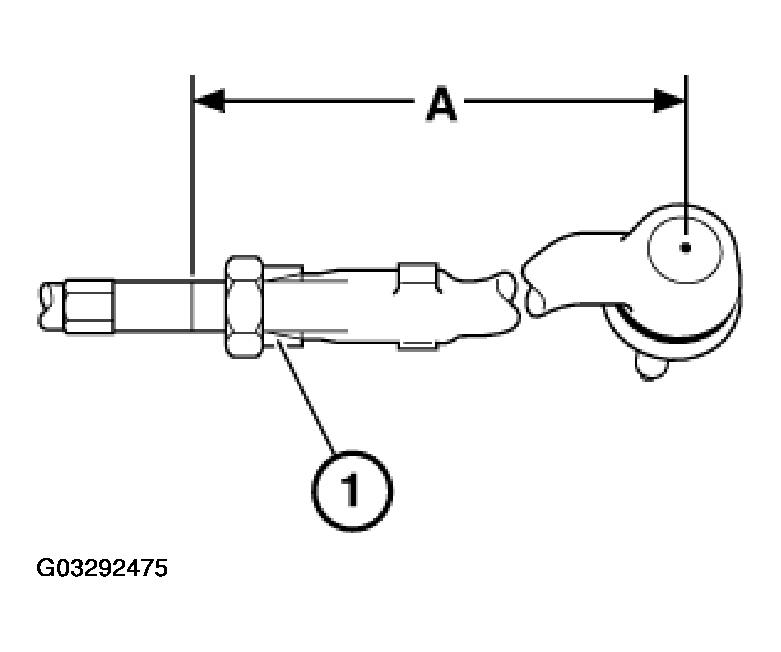

Fig 2: Front Axle Clamping Ring And Dimension A Measurement

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform chassis alignment check. Refer to 32 00 150 STANDARD CHASSIS/WHEEL ALIGNMENT WITH DIN LOAD and 32 00 155 CHASSIS/WHEEL ALIGNMENT WITHOUT LOAD .
Carry out steering angle sensor adjustment/adjustment for active front steering. Refer to 61 31 996 CARRY OUT STEERING ANGLE SENSOR ADJUSTMENT .
