32 00 620 Adjusting Rear Axle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A camber change always means a toe change as well. The camber must therefore be adjusted first.

Adjusting Camber:

Replace nut (2) and tighten to 5 N.m.

Turn eccentric bolt (1) to adjust camber to setpoint value.

Tighten nut (2).

Tightening torque, refer to 33 32 20AZ in TORQUE SPECIFICATIONS .

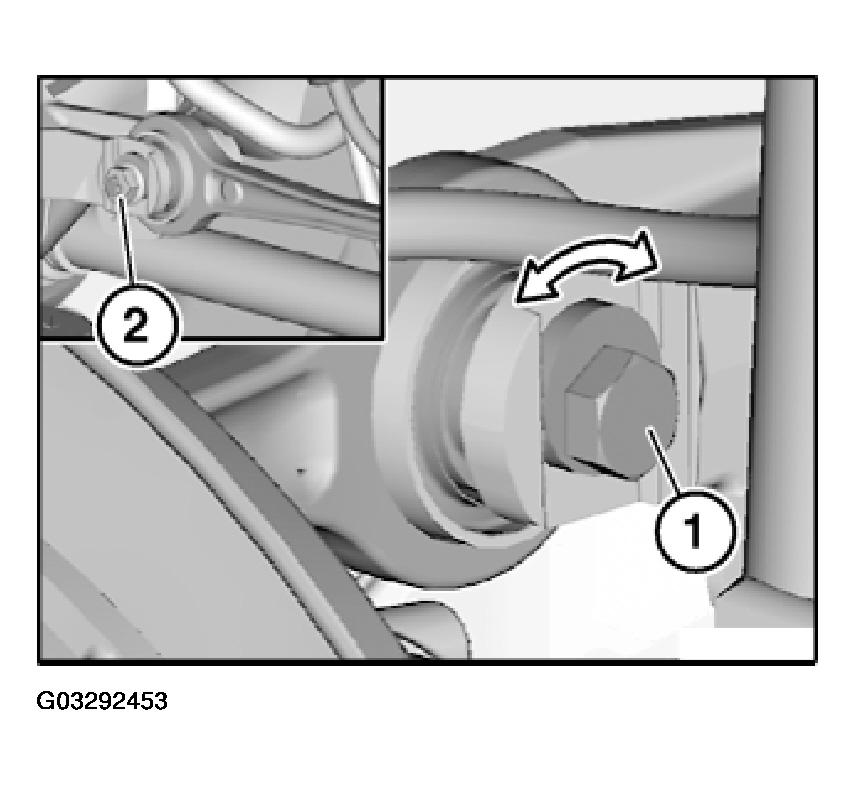

Fig 1: Adjusting Camber Eccentric Bolt, Nut And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting Toe:

Replace nut (2) and tighten to 5 N.m.

Turn eccentric bolt (1) to adjust toe to specified value.

Tighten nut (2).

Tightening torque, refer to 33 32 5AZ in TORQUE SPECIFICATIONS .

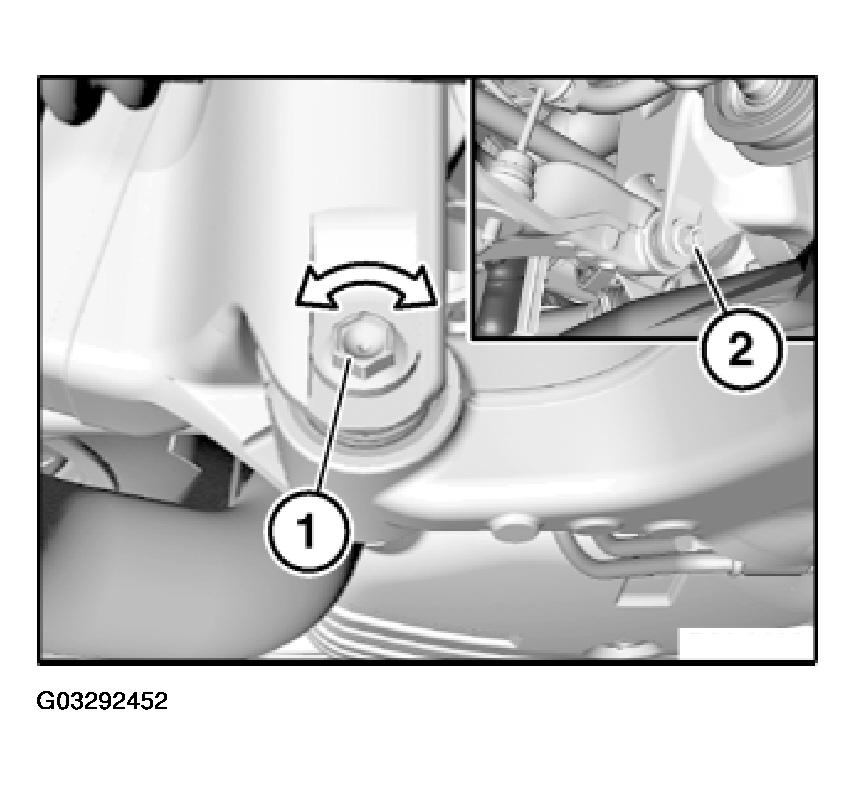

Fig 2: Adjusting Toe Eccentric Bolt, Nut And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
