51 47 491 Removing and installing/replacing rear underbody protection
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT UNDERBODY PROTECTION .

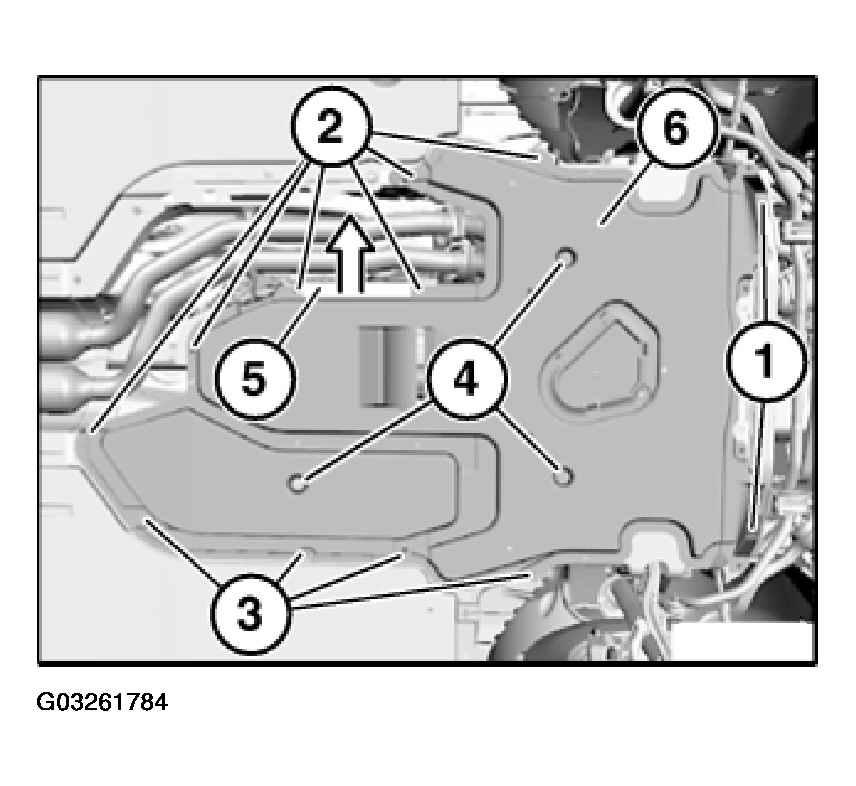

Not M5
Unfasten screws (1... 3).
Press heat shield (5) back.
Release screws (4) and remove underbody protection (6).
Installation:
Ensure correct seating.
Center underbody protection (6) and tighten down all screws.

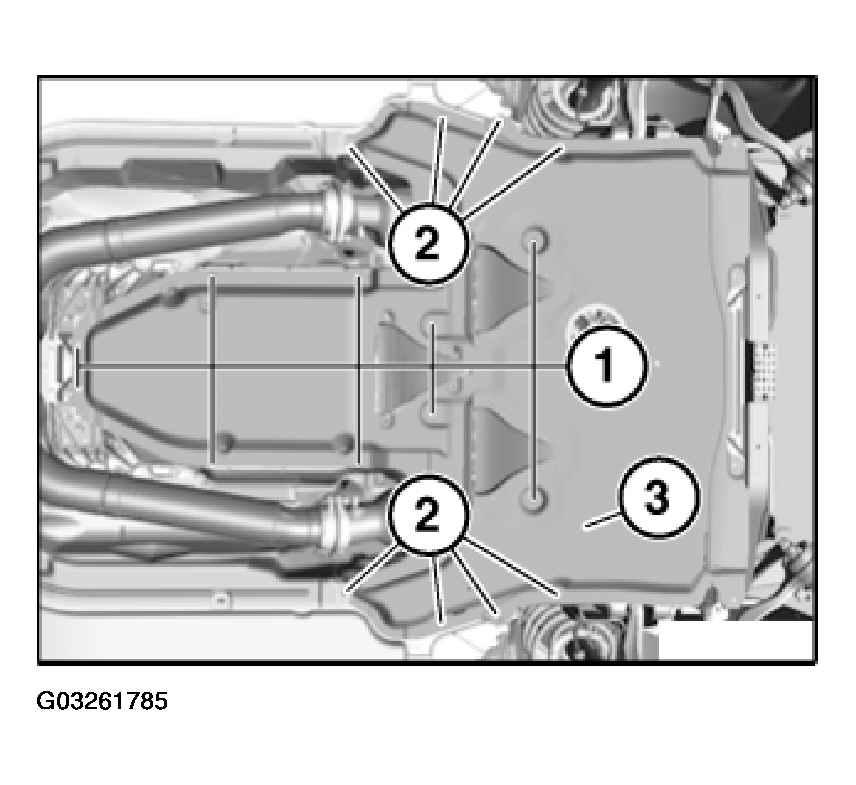

M5 only
Unfasten screws (1 and 2).
Remove underbody protection (3).
Installation:
Ensure correct seating.
Center underbody protection (3) and tighten down all screws.
