61 35 196 Removing and installing (replacing) control unit for automatic operation of tailgate system
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Necessary preliminary work:
- Remove rear RIGHT FLOOR PANEL
- Clamp off BATTERY EARTH LEAD
NOTE:

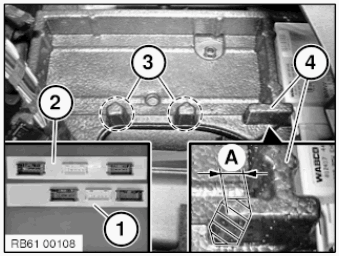

From 09/2010, the control unit is installed with a different placement of connector chambers:
(2) control unit to 09/2010 (1)
control unit from 09/2010
Replacement:
When control unit (1) is installed in vehicles with a production date up to 09/2010, the styrofoam projections (3) must be removed completely. Remove piece (A) = approx. 12 mm from styrofoam projection (4).
IMPORTANT:
Do not remove styrofoam projection (4) completely.

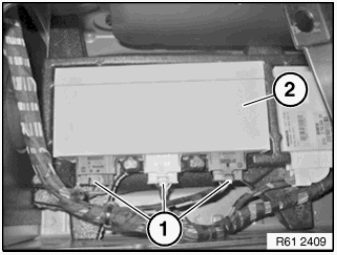

Unlock plug connections (1) and disconnect.
Remove control unit for automatic operation of tailgate system (2) upwards.
Installation note:
Make sure the control unit for automatic operation of tailgate system (2) is correctly seated.
Replacement:
Carry out VEHICLE PROGRAMMING AND ENCODING .
