41..... Filling Bulkhead Cross Member With Foam

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

For acoustic insulation reasons insulating foam is applied to the finish-painted bodyshell in the bulkhead cross member area.

A 2-component PU cavity foam is used.

Observe SAFETY AND APPLICATION INSTRUCTIONS .

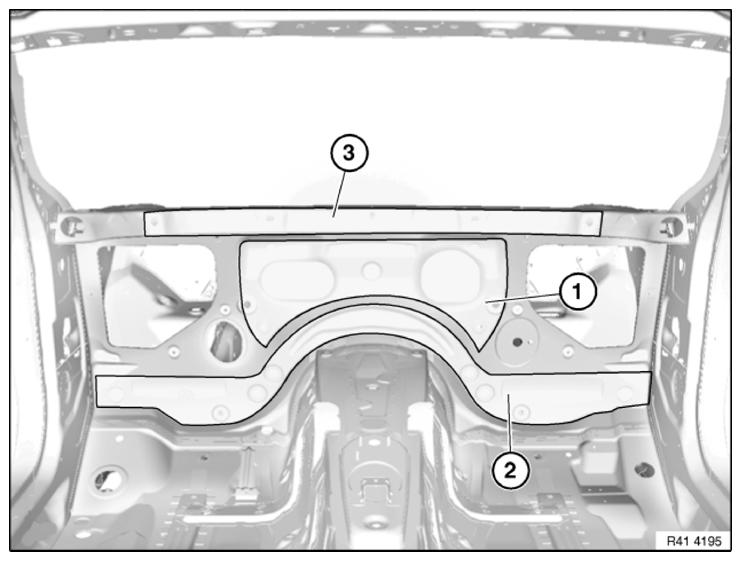

Fig 1: Identifying Cavity Foam And Bulkhead Cross Member Area

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seal plugs of cavities 1 to 3 and fill cavities with foam.

In so doing, insert spray pipe into bores and slowly pull out during the spraying operation.

To perform the operation, it may be necessary to lengthen the spray pipe.

IMPORTANT: Empty the can within 8 minutes.
Follow manufacturer's safety instructions.
