41 00... Installation Solution For Straight Shank/Hexagon Rivet Nut

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Protection measures!

Wear safety goggles
Wear protective gloves

Hexagon/straight shank rivet nut (up to thread 8) with hand rivet gun ZS308

IMPORTANT: Risk of damage!
Failure to comply with these instructions may result in the drill bit slipping and causing significant paintwork damage.

Mark position of bore and then punch-mark component

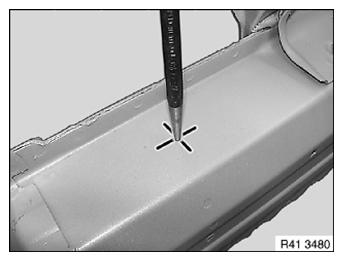

Fig 1: Identifying Hexagon Rivet Nut Mark Position
Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT:
If the determined drill bit diameter is not observed:
- the knurling on the straight shank rivet nut is rendered useless
- the component will be damaged when the straight shank rivet nut is inserted
Determining suitable drill bit:

Depending on the rivet nut shank diameter, the next drill bit diameter higher (5/10 step) can be used.

E.g. with a shank diameter of 10.1 mm, the 10.5 mm drill bit can be used. The 11.0 mm drill bit must not be used.
Drill bore with determined drill bit and deburr, pilot-drill with a smaller drill bit if necessary

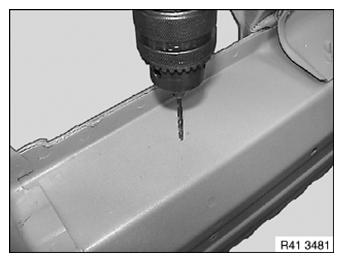

Fig 2: Drilling Bore On Body
Courtesy of BMW OF NORTH AMERICA, INC.
Clean component, eliminate paintwork damage if necessary

Fig 3: Identifying Bore On Body
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To avoid corrosion, stop chips/debris by means of cavity sealing.
Follow INSTRUCTIONS ON CORROSION PROTECTION .
Preserving cavity

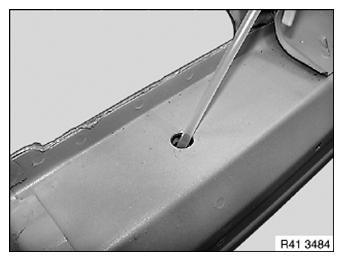

Fig 4: Preserving Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow manufacturer's operating instructions.
Make sure straight shank rivet nut correctly contacts component.

5Set rivet nut with hand rivet gun

NOTE: According to the manufacturer, the pictured tool is suitable up to an M8 thread

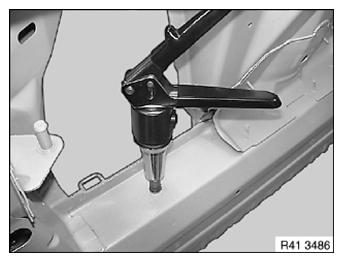

Fig 5: Setting Rivet Nut With Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

IMPORTANT: Follow manufacturer's operating instructions.
Make sure hexagon rivet nut correctly contacts component.

Set rivet nut with hand rivet gun

NOTE: According to the manufacturer, the pictured tool is suitable up to an M12 thread

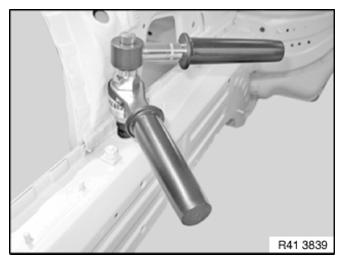

Fig 6: Setting Hexagon/Straight Shank Rivet Nut With Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.
