51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks:
- Remove REAR DOOR TRIM PANEL

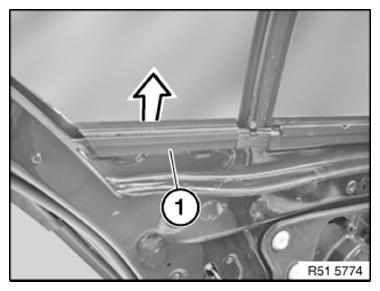

Pull front window cavity cover strip (1) off rear door.
Installation:
Moisten window cavity cover strip (1) prior to fitting with APPROVED LUBRICANT .

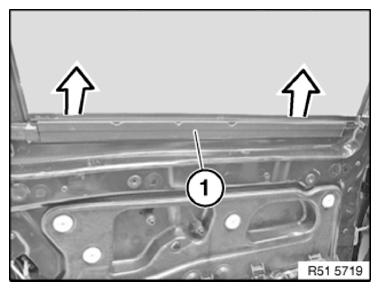

Pull rear window cavity cover strip (1) off rear door.
